| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| Type | |
| Voltage | |
| Width |

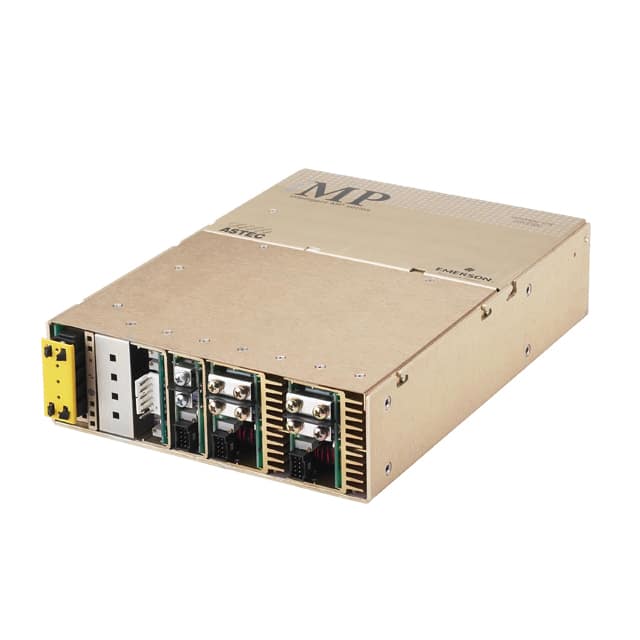

The Artesyn Embedded Technologies IMP8-3V0-2V0-30-A is an enclosed AC/DC converter designed for ITE (Commercial) and Medical applications. This unit provides a robust 987W of power with a single output delivering 23.5A. It operates efficiently at 85% and supports a wide input voltage range, making it suitable for universal use.
Key features include adjustable output, I²C interface, PFC, PMBus™, and remote sense capabilities. The converter is built for durability with a chassis mount type and dimensions of 254.0mm x 177.8mm x 63.5mm. It is designed to operate reliably in demanding environments, with an operating temperature range of -40°C to 70°C, including derating.
Compliance certifications include CB, CE, CSA, and UL, ensuring suitability for various international markets. The IMP8-3V0-2V0-30-A is an ideal choice for applications requiring a high-power, reliable AC/DC conversion solution.
The IMP8-3V0-2V0-30-A has a power output of 987W.
This AC/DC converter has a current rating of 23.5 A.
The dimensions are 254.0mm (Length) x 177.8mm (Width) x 63.5mm (Height).
The operating temperature range is -40°C to 70°C, with derating.
The IMP8-3V0-2V0-30-A uses chassis mount.
