| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
3 pcs
|
3 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Turn Off Time | |
| Turn On Time |

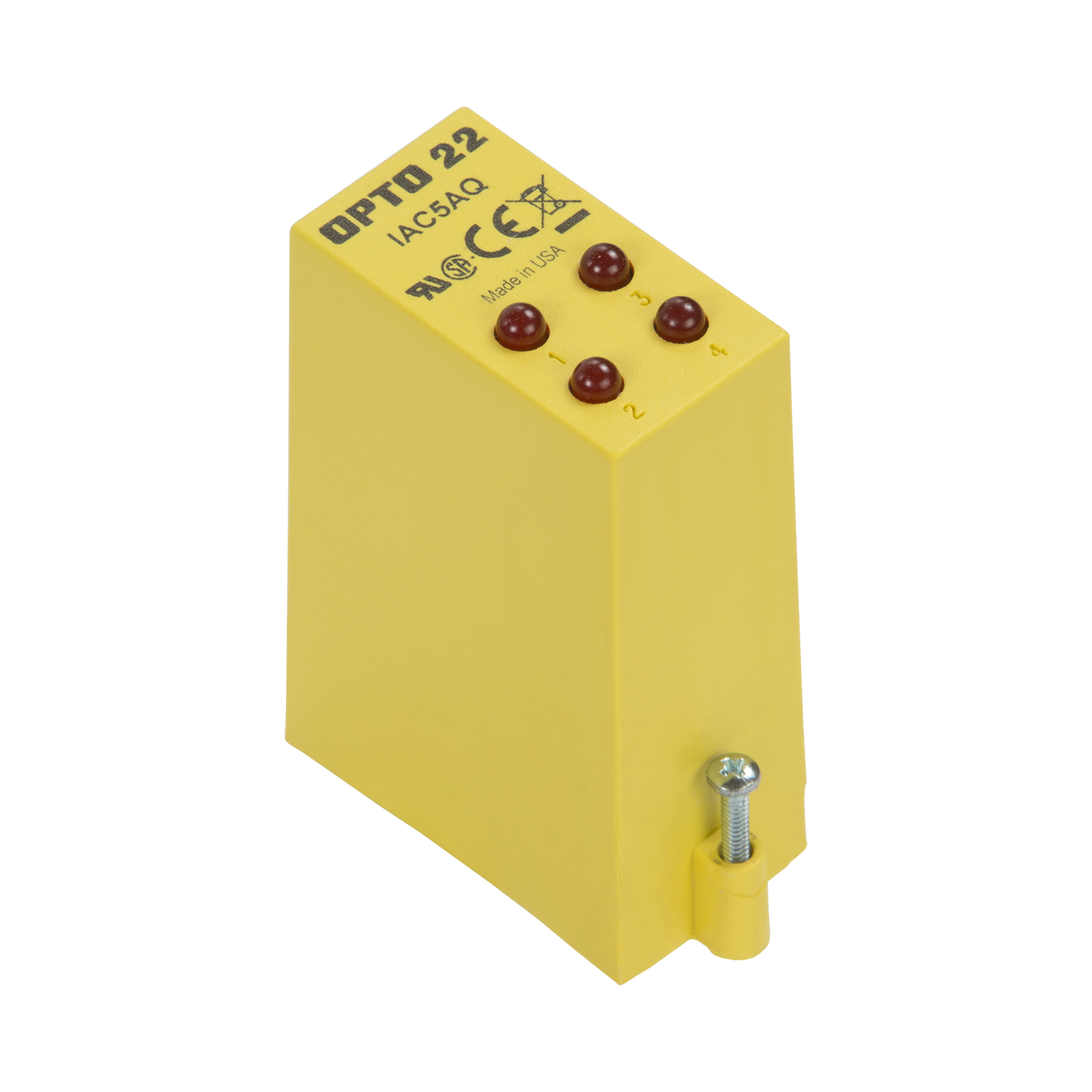

The Opto 22 IAC5AQ is a Quad Pak 4-channel AC/DC input module. It is designed for sensing ON/OFF AC voltages and accepts an input voltage range of 180-280 VAC/VDC, utilizing 5 VDC logic.
This module provides up to 4,000 Vrms of optical isolation between field inputs and the logic side of the circuit, ensuring robust performance in industrial environments. It features filtering on the input and a hysteresis amplifier for high noise rejection and transient-free switching.
The IAC5AQ is compatible with Opto 22 Optomux, Pamux, and Mistic protocol brain boards and mounting racks, as well as racks using a direct cable connection to a computer. It can also be used with a Raspberry Pi and the Digital I/O Carrier Board (part number OPTO-P1-40P).
Key specifications include a typical input current of 6.5 mA at maximum line, a turn-on time of 20 ms, and a turn-off time of 20 ms. The operating ambient temperature range is -30 to 70 °C.
| Qty | Low | High |
|---|---|---|
| 1+ | $116.00 | $116.00 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The Opto 22 IAC5AQ accepts an input voltage range of 180-280 VAC/VDC.
The IAC5AQ module uses a nominal logic supply voltage of 5 VDC, with a range of 4.5-6 VDC.
The IAC5AQ provides up to 4,000 Vrms of optical isolation between field inputs and the logic side.
The operating ambient temperature range for the IAC5AQ is -30 to 70 °C.
