Mfr Part #:

IAC5

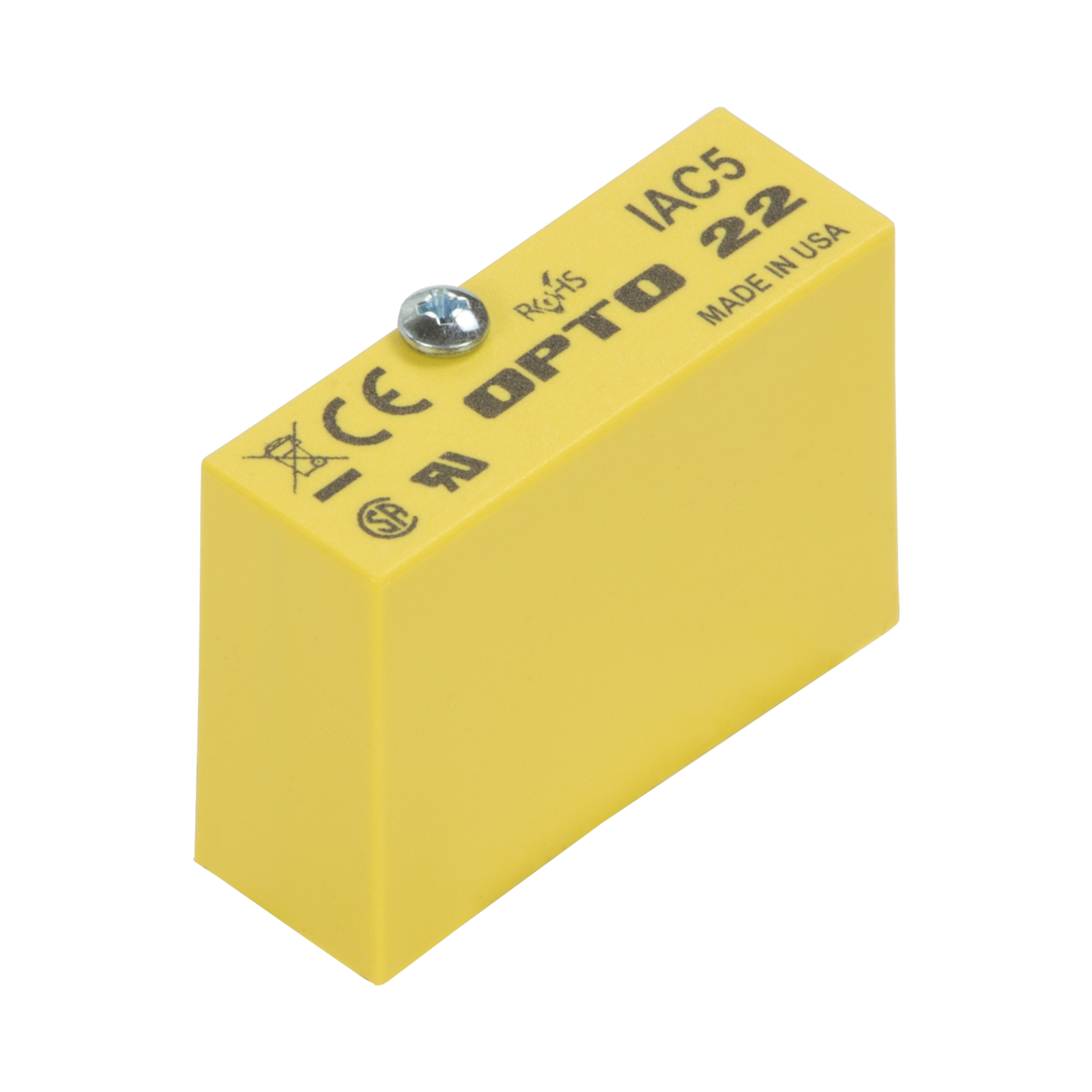

The Opto 22 IAC5 is an AC Digital Input Module designed for sensing ON/OFF AC voltage levels between 90-140 VAC. It provides 4000 volts of optical isolation.

✓ Total Stock: 100 pcs

$ Price Range: $30.50

IAC5 Available from 1 distributor

✓ Authorised

✓ Non-Authorised

Distributor		Stock	Pricing	MOQ	PKG	Lead Time	Date Code	On Order Quantity	On Order Delivery
Chanetech ✓ Non-Authorised Inventory information	100 pcs On Request	100 pcs	On Request	1	On Request	On Request	On Request	On Request	On Request

IAC5 Specifications Quick View

Most important parameters for selection – full specs in datasheet.

SELECT ALL

Category	New Products
Manufacturer Name	TT Electronics/BI
Operating Temperature	-30 to 70 °C
Output Current	50 mA
Turn Off Time	20 ms
Turn On Time	20 ms

View Similar Products (0)

IAC5 Description

Short technical summary and product information.

The Opto 22 IAC5 is an AC Digital Input Module from the G1 I/O Family, designed to sense ON/OFF alternating current (AC) voltage levels within the range of 90-140 VAC. This module features filtering and a hysteresis amplifier, ensuring high noise rejection and transient-free clean switching.

Key electrical specifications include an input current of 5 mA at max line, a turn-on and turn-off time of 20 ms, and an output supply voltage nominal of 5 VDC with a range of 4.5-6 VDC. The module provides 4000 volts (transient) of optical isolation between the field inputs and the logic output circuit. It also offers an output voltage drop of 0.4 volts at 50 mA and an output current capability of 50 mA.

Typical applications for the IAC5 module include sensing the presence or absence of voltage from sources such as proximity switches, limit switches, float switches, selector switches, push buttons, toggle switches, and thermostats. The module operates within an ambient temperature range of -30 to 70 °C.

IAC5 Quick Information

Product Type: AC Input Module

Series: G1 I/O Family

Canonical Name: AC Digital Input Module

Subcategory: Digital Input Module

IAC5 Compliance

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

IAC5 Estimated Pricing

Qty	Low	High
1+	$30.50	$30.50

Estimated market price range - modelled values for guidance only, not live distributor offers.

IAC5 Features

Senses 90-140 VAC voltage levels.
Provides 4000 volts transient optical isolation.
Features high noise rejection and clean switching.
Operates from -30 to 70 °C ambient temperature.
Designed for sensing various switch types.

IAC5 Applications

Senses proximity switch status.
Monitors limit switch activations.
Detects float switch states.
Used with selector and toggle switches.
Integrates with push buttons and thermostats.

IAC5 FAQs

6 frequently asked questions generated from this part’s specifications.

What is the input voltage range of the IAC5?

90-140 VAC.

What is the output voltage of the IAC5?

Nominal 5 VDC, with a range of 4.5-6 VDC.

What is the isolation voltage between input and output?

4000 V transient.

What is the operating temperature range?

-30 to 70 °C.

What is the maximum output current?

50 mA.

What are the turn-on and turn-off times?

20 ms each.
