Mfr Part #:

IAC15

Mfr Name: Opto 22

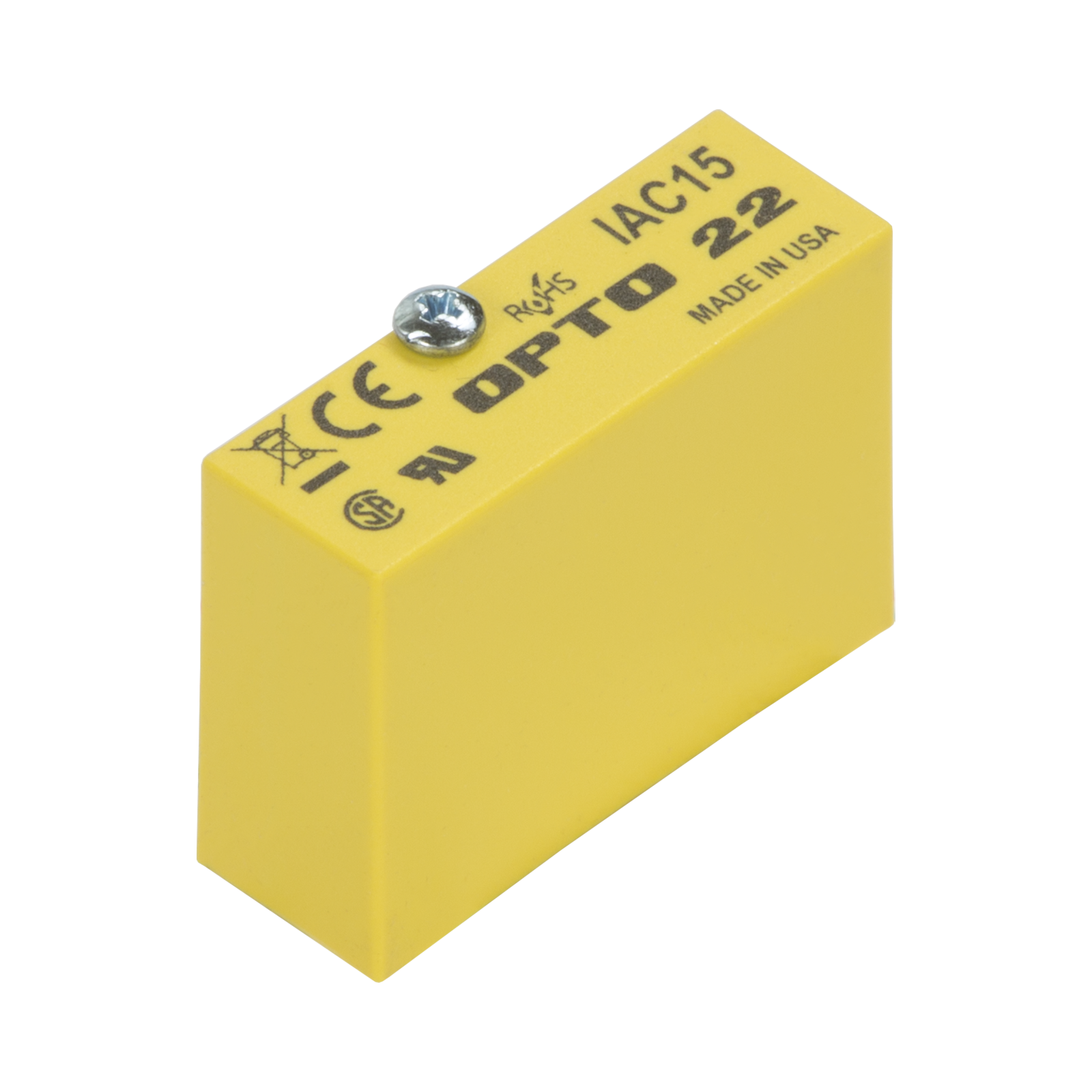

The Opto 22 IAC15 is an AC digital input module designed for sensing ON/OFF AC voltage levels. It operates within a 90-140 VAC input range and provides 4000 volts of optical isolation.

✓ Total Stock: 7 pcs

$ Price Range: $3.44

IAC15 Available from 1 distributor

✓ Authorised

✓ Non-Authorised

Distributor		Stock	Pricing	MOQ	PKG	Lead Time	Date Code	On Order Quantity	On Order Delivery
Partservice ✓ Non-Authorised Inventory information	7 pcs On Request	7 pcs	On Request	1	On Request	On Request	On Request	On Request	On Request

IAC15 Specifications Quick View

Most important parameters for selection – full specs in datasheet.

SELECT ALL

Category	New Products
Manufacturer Name	Opto 22
Operating Temperature	-30 to 70 °C
Output Current	50 mA
Storage Temperature	°C ~ °C
Tape & Reel	No
Turn Off Time	20 ms
Turn On Time	20 ms

View Similar Products (0)

IAC15 Description

Short technical summary and product information.

The Opto 22 IAC15 is a robust AC digital input module from the G1 I/O family, engineered for reliable sensing of ON/OFF alternating current voltage levels. It features a wide input voltage range of 90-140 VAC, ensuring compatibility with various AC sources. The module is designed with integrated filtering and a hysteresis amplifier, providing high noise rejection and transient-free clean switching for stable operation.

Key electrical specifications include a nominal 15 VDC logic supply voltage and a typical output current of 50 mA. The IAC15 offers a significant 4000 volts (transient) of optical isolation between the field inputs and the logic output, protecting sensitive control systems from voltage spikes and noise. Its operating ambient temperature range is -30 to 70 °C, making it suitable for demanding industrial environments.

Typical applications for the IAC15 module include sensing the presence or absence of voltage from sources such as proximity switches, limit switches, float switches, selector switches, push buttons, toggle switches, and thermostats. It is important to note that IAC15 modules are not intended for use with Opto 22 brains.

IAC15 Quick Information

Product Type: AC Digital Input Module

Canonical Name: Opto 22 IAC15 AC Digital Input Module

Subcategory: AC Input Module

IAC15 Compliance

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

IAC15 Estimated Pricing

Qty	Low	High
1+	$3.44	$3.44

Estimated market price range - modelled values for guidance only, not live distributor offers.

IAC15 Features

Senses 90-140 VAC voltage levels.
Provides 4000 volts transient optical isolation.
Features high noise rejection and clean switching.
Operates in -30 to 70 °C ambient temperature.
Suitable for various switch-based inputs.

IAC15 Applications

Sensing proximity switch status.
Monitoring limit switch activations.
Detecting float switch states.
Interfacing with selector switches.
Reading push button inputs.

IAC15 FAQs

6 frequently asked questions generated from this part’s specifications.

What is the input voltage range for the Opto 22 IAC15?

The input voltage range for the IAC15 module is 90-140 VAC.

What is the logic supply voltage for the IAC15 module?

The nominal logic supply voltage for the IAC15 module is 15 VDC.

What is the isolation voltage provided by the IAC15 module?

The IAC15 module provides 4000 volts (transient) of optical isolation between the field inputs and the logic output.

What is the operating temperature range for the Opto 22 IAC15?

The operating ambient temperature range for the IAC15 module is -30 to 70 °C.

What is the RoHS status of the Opto 22 IAC15?

The Opto 22 IAC15 is RoHS3 Compliant.

What is the Moisture Sensitivity Level (MSL) for the IAC15?

The Moisture Sensitivity Level (MSL) for the IAC15 is 1 Unlimited.
