| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
10,097 pcs
|
10097 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Mounting Type | |
| Storage Temperature | |
| Tape & Reel |

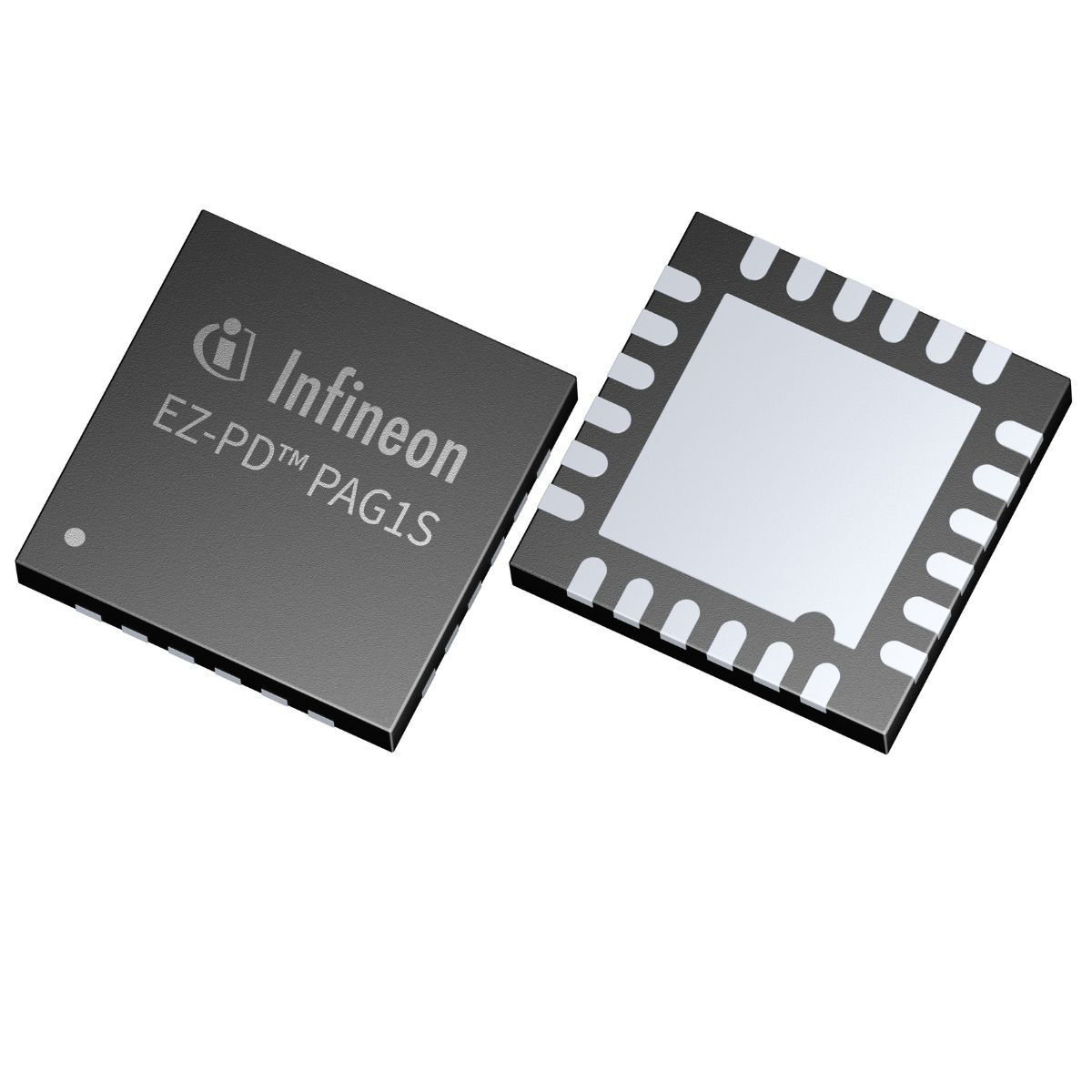

The Infineon CYPD3184A1-24LQXQ is a secondary-side controller from the EZ-PD™ PAG1S family. This product has been qualified according to JEDEC standards for industrial applications, demonstrating robust performance and reliability.
The qualification report details extensive electrical and environmental stress testing. Electrical tests include Biased Highly Accelerated Stress Test (HAST) at 130°C, High Temperature Operating Life (HTOL) at 150°C, and ESD testing (HBM Class 2 and CDM Class C2a). Environmental tests encompass Pre-conditioning, Temperature Cycling (-65°C to +150°C), Pressure Cooker Test (PCT) at 121°C, and High Temperature Storage Life (HTSL) at 150°C. All tests passed, indicating high reliability.
The device is supplied in a PG-VQFN-24 package, suitable for surface mounting. The qualification was completed in 2019, ensuring it meets defined requirements for target applications.
| Qty | Low | High |
|---|---|---|
| 1+ | $12.91 | $12.91 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The CYPD3184A1-24LQXQ has undergone High Temperature Operating Life testing at 150°C and High Temperature Storage Life testing at 150°C. It also passed a Highly Accelerated Stress Test at 130°C and a Pressure Cooker Test at 121°C.
The datasheet indicates an MSL of 3 at 260°C, while the database lists it as Level 1 Unlimited.
The CYPD3184A1-24LQXQ has an ESD rating of HBM Class 2 (2000 V) and CDM Class C2a (500 V).
This part is supplied in the PG-VQFN-24 package.
