BK/1A3400-09-R
Eaton - Electronics Division
Eaton BK/1A3400-09-R is a 20A cartridge fuse clip with through hole mounting and PC pin termination.
| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
430 pcs
|
430 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Fuse Type | |
| Fuseholder Type | |
| Lead Style | |
| Mounting Type | |
| Number of Circuits | |
| Termination Style |

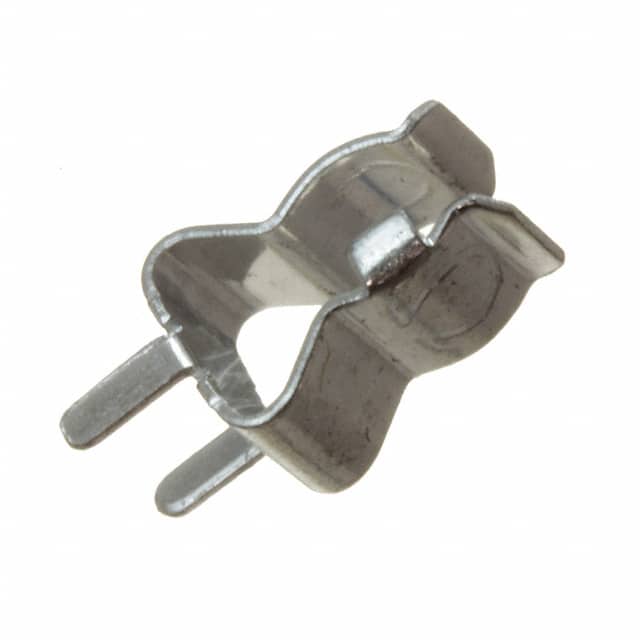

The Eaton BK1/HTC-220M is a through hole cartridge fuse clip designed for single circuit applications. It features PC Pin termination for reliable soldering to PCBs and a clip-style holder that securely accommodates cartridge fuses.
This fuseholder is mounted via through hole and offers a compact solution for circuit protection. It is compliant with RoHS3, REACH unaffected, and has an MSL rating of 1 Unlimited (unverified). No current or voltage ratings are specified in the available data.
Typical applications include power supplies, industrial controls, and consumer electronics where cartridge fuses are used. The clip design allows easy fuse replacement while maintaining a low profile on the board.
Through Hole.
Cartridge fuses.
PC Pin.
1 circuit.
Clip.
RoHS3 Compliant (unverified).
1 Unlimited (unverified).
