| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
3,360 pcs
|
3360 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
3,360 pcs
|
3360 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Conducting Path Cross Section | |
| Contact Finish | |
| Contact Material | |
| Current Rating | |
| Current Rating (Amps) | |
| For Use With | |
| Fuse Size | |
| Fuse Type | |
| Fuseholder Type | |
| Lead Dimensions | |
| Lead Spacing | |
| Lead Style | |
| Mounting Type | |
| Number of Circuits | |
| Orientation | |
| Termination Style | |
| Voltage | |
| Weight |

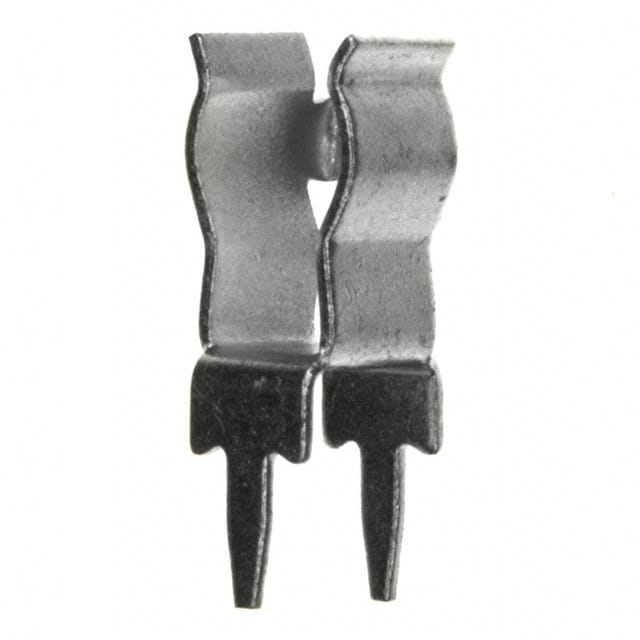

The Littelfuse Inc. part number 52000001009 is a cartridge fuse clip intended for through-hole mounting on a printed circuit board. It accommodates 5 mm diameter cartridge fuses in a horizontal orientation. The clip is constructed with phosphor bronze contacts and a tin finish, terminated by PC pins with a 5 mm lead spacing. The conducting path cross-section is 0.2 mm² and the unit weight is 0.9 g.
Electrical ratings for this fuse clip are 6.3 A maximum current and 250 V voltage. It is designed for use in single-circuit applications. The clip provides reliable fuse retention for circuit protection in various electronic assemblies.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.26 | $0.26 |
| 5+ | $0.21 | $0.21 |
| 10+ | $0.20 | $0.20 |
| 50+ | $0.16 | $0.16 |
| 100+ | $0.15 | $0.15 |
| 250+ | $0.14 | $0.14 |
| 500+ | $0.13 | $0.13 |
| 2,000+ | $0.11 | $0.11 |
| 6,000+ | $0.09 | $0.09 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The current rating is 6.3 A.
The voltage rating is 250 V.
This clip accepts cartridge fuses with a 0.197 inch (5 mm) diameter.
It is a through-hole mounting fuse clip with PC pin termination and 5 mm lead spacing.
The fuse clip is designed for horizontal orientation.
