| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
3,562 pcs
|
3562 pcs | On Request | 1000 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| CE | |
| China RoHS | |
| Climatic Category | |
| Contact Finish | |
| Contact Material | |
| Contact Resistance | |
| Current Rating | |
| Current Rating (Amps) | |
| For Use With | |
| Fuse Size | |
| Fuse Type | |
| Fuseholder Type | |
| Lead Spacing | |
| Lead Style | |
| Mounting Type | |
| Number of Circuits | |
| Operating Temperature Range | |
| Orientation | |
| Resistance to Soldering Heat | |
| Solderability | |
| Soldering Method | |
| Termination Style | |
| UKCA | |
| Voltage Rating | |
| Weight |

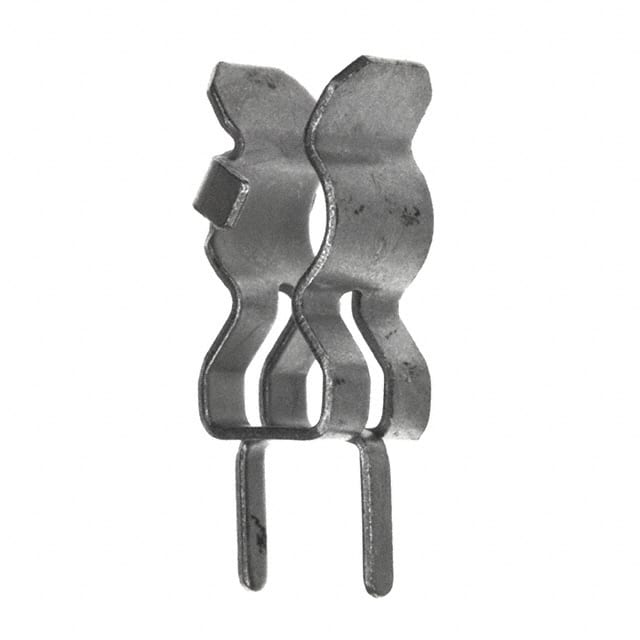

The Schurter 0751.0062 is a fuse clip belonging to the OG (Clip) 5x20 series, designed to accommodate 5x20mm cartridge fuses. It is rated for 10A (UL/CSA) and 500 VAC/DC, making it suitable for a variety of industrial and electronic applications.
Key electrical specifications include a contact resistance of less than 10 milliohms at 100 mA. The operating temperature range is -40°C to 85°C, with a climatic category of 40/085/21 per IEC 60068-1. The clip is constructed with brass terminals and a tin finish, ensuring reliable conductivity and solderability.
Mounting is through hole with a horizontal orientation and PC pin termination, designed for wave soldering. The product meets solderability requirements at 245°C for 3 seconds and resistance to soldering heat at 260°C for 10 seconds per IEC 60068-2-20.
The fuse clip is UL recognized (File E39328) for industrial control equipment and complies with IEC/UL 62368-1 for audio/video and IT equipment. It is CE, UKCA, RoHS, REACH, and China RoHS compliant, suitable for use in regulated environments.
The fuse clip is rated for 10A (UL/CSA).
The voltage rating is 500 VAC/DC.
It accepts 5x20mm cartridge fuses.
Through hole mounting with PC pin termination.
-40°C to 85°C.
Less than 10 milliohms at 100 mA.
It is UL recognized, CE marked, UKCA marked, RoHS and REACH compliant, and meets China RoHS.
