PUMD10,115
NXP Semiconductors
The NXP Semiconductors PUMD10,115 is a pre-biased bipolar transistor array featuring 1 NPN and 1 PNP transistor. It operates at up to 50V and 100mA.
| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
8,000 pcs
|
8000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Automotive Grade | |
| Industrial Grade | |
| Medical Grade | |
| Military Grade | |
| Mounting Type | |
| Storage Temperature | |
| Tape & Reel |

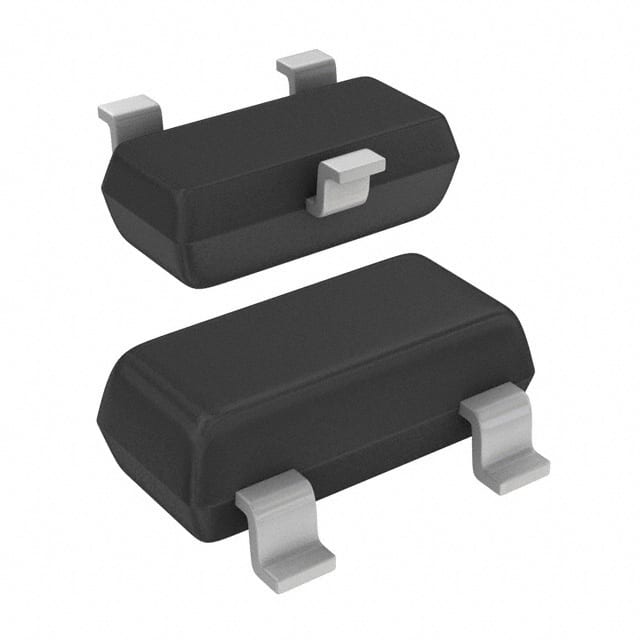

The NXP Semiconductors BAT54CW,115 is a planar Schottky barrier diode designed for high-speed switching applications. It features an integrated guard ring for stress protection and is encapsulated in a small SOT323 (SC-70) surface-mounted device (SMD) plastic package.
Key electrical characteristics include a maximum reverse voltage of 30V and a typical forward voltage of 800mV at 100mA. The diode offers a low reverse current of 2µA at 25V and a maximum forward current of 200mA. It also has a repetitive peak forward current of 300mA and a non-repetitive peak forward current of 600mA.
This AEC-Q101 qualified diode is suitable for applications such as voltage clamping, line termination, and reverse polarity protection. Its low capacitance and ultra-high-speed switching capabilities make it a versatile component for various electronic designs.
The BAT54CW,115 is supplied in a SOT323 package, designed for surface mounting. The device operates within a junction temperature range of -55°C to +150°C and an ambient temperature range of -55°C to +150°C.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The maximum reverse voltage is 30V.
The typical forward voltage is 800mV at 100mA.
The typical reverse current is 2µA at 25V.
The maximum forward current is 200mA.
The BAT54CW,115 is supplied in a SOT323 package.
Yes, the BAT54CW,115 is AEC-Q101 qualified.
