Mfr Part #:

ATWINC1500-MR210PB

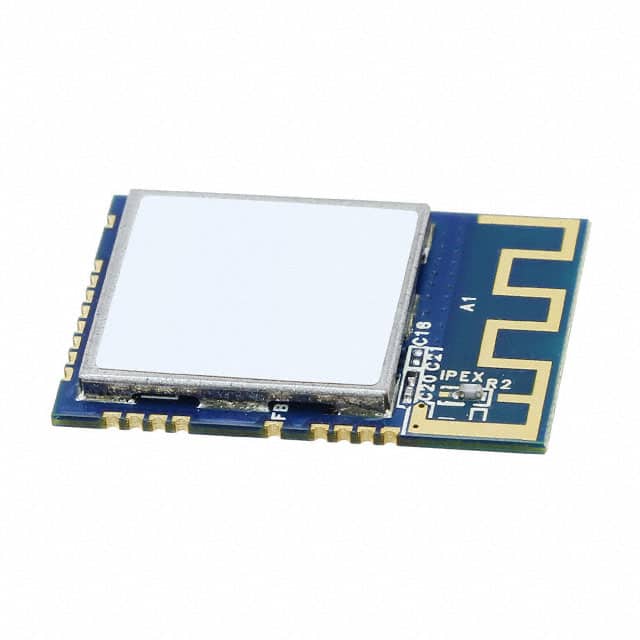

The Microchip Technology ATWINC1500-MR210PB is a WiFi 802.11b/g/n transceiver module operating at 2.4GHz. It offers a data rate of up to 72.2Mbps.

✓ Total Stock: 25,387 pcs

$ Price Range: $0.99

ATWINC1500-MR210PB Available from 2 distributors

✓ Authorised

✓ Non-Authorised

Distributor		Stock	Pricing	MOQ	PKG	Lead Time	Date Code	On Order Quantity	On Order Delivery
Smaxon Electronics ✓ Non-Authorised Inventory information	23,207 pcs On Request	23207 pcs	On Request	1	On Request	On Request	2020+	On Request	On Request
Xingangxin ✓ Non-Authorised Inventory information	2,180 pcs On Request	2180 pcs	On Request	1	On Request	On Request	On Request	On Request	On Request

ATWINC1500-MR210PB Description

Short technical summary and product information.

The ATWINC1500-MR210PB from Microchip Technology is an RF transceiver module designed for WiFi 802.11b/g/n communication. It operates in the 2.4GHz frequency band and supports data rates up to 72.2Mbps.

Key electrical specifications include an output power of 18.5dBm and a sensitivity of -95dBm. The module supports multiple modulation schemes such as 16-QAM, 64-QAM, BPSK, CCK, DBPSK, DQPSK, OFDM, and QPSK. It features integrated trace antenna and provides serial interfaces including I²C, SPI, and UART.

This module is suitable for applications requiring wireless connectivity. It has a supply voltage range of 2.7V to 3.6V, with a receiving current of 61mA and a transmitting current of 265mA. The operating temperature range is -40°C to 85°C.

The ATWINC1500-MR210PB is available in a surface mount module package. It includes 4MB of Flash memory and 128kB of RAM.

ATWINC1500-MR210PB Quick Information

Product Type: RF Transceiver Module

Canonical Name: ATWINC1500-MR210PB WiFi 802.11b/g/n Transceiver Module

Subcategory: WiFi

ATWINC1500-MR210PB Compliance

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

ATWINC1500-MR210PB Estimated Pricing

Qty	Low	High
1+	$0.99	$0.99

Estimated market price range - modelled values for guidance only, not live distributor offers.

ATWINC1500-MR210PB Features

WiFi 802.11b/g/n transceiver module.
Operates at 2.4GHz frequency band.
Supports data rates up to 72.2Mbps.
Integrated trace antenna for compact designs.
Surface mount package for easy assembly.

ATWINC1500-MR210PB Applications

Enables wireless connectivity in embedded systems.
Suitable for IoT device communication.
Used in smart home automation products.
Ideal for remote sensor networks.

ATWINC1500-MR210PB FAQs

7 frequently asked questions generated from this part’s specifications.

What is the WiFi protocol supported by the ATWINC1500-MR210PB?

The ATWINC1500-MR210PB supports WiFi 802.11b/g/n protocols.

What is the operating frequency of this WiFi module?

This module operates at a frequency of 2.4GHz.

What is the maximum data rate for the ATWINC1500-MR210PB?

The module supports a maximum data rate of 72.2Mbps.

What are the serial interfaces available on this module?

The available serial interfaces are I²C, SPI, and UART.

What is the supply voltage range for the ATWINC1500-MR210PB?

The module operates with a supply voltage range of 2.7V to 3.6V.

What is the operating temperature range of this module?

The operating temperature range is -40°C to 85°C.

What is the MSL rating for the ATWINC1500-MR210PB?

The Moisture Sensitivity Level (MSL) is 3 (168 Hours).

ATWINC1500-MR210PB Alternate Parts

Same form/fit/function or matching attribute configuration across different manufacturers.

View All Alternate Parts

ATWINC1500-MR210PB1961

Microchip Technology

The Microchip Technology ATWINC1500-MR210PB1961 is a WiFi RF transceiver module operating at 2.4GHz. It features a data rate of 72.2Mbps and a surface mount package.

View Part

ATWINC1500-MR210PB1952
