| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
5,027 pcs
|
5027 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Antenna Type | |
| Current | |
| Data Rate | |
| Frequency | |
| Memory Size | |
| Modulation | |
| Mounting Type | |
| Operating Temperature | |
| Power | |
| Protocol | |
| RF Family | |
| Sensitivity | |
| Serial Interfaces | |
| Tape & Reel | |
| Utilized IC | |
| Voltage |

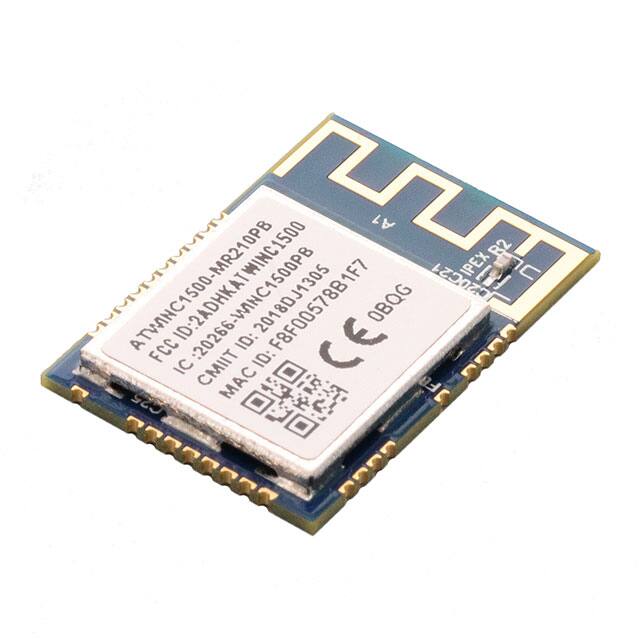

The Microchip Technology ATWINC1500-MR210PB1961 is an RF transceiver module designed for WiFi applications. It operates in the 2.4GHz frequency band and supports the 802.11b/g/n protocols, offering a data rate of up to 72.2Mbps.
This module features a transmit power of 18.5dBm and a receiver sensitivity of -95dBm, utilizing various modulation schemes including 16-QAM, 64-QAM, BPSK, CCK, DBPSK, DQPSK, OFDM, and QPSK. It is powered by the ATWINC1500 IC and includes 4MB of Flash memory and 128kB of RAM.
Connectivity is provided through I²C, SPI, and UART serial interfaces. The module operates within a voltage range of 2.7V to 3.6V and consumes approximately 61mA of current. It is designed for surface mounting and comes in a 28-SMD Module package.
The operating temperature range is -40°C to 85°C, and it is RoHS3 compliant.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The operating voltage is 2.7V to 3.6V.
The package type is 28-SMD Module.
The operating temperature range is -40°C to 85°C.
Yes, it is RoHS3 Compliant.
