ATWINC1500-MR210PB1961
Microchip Technology

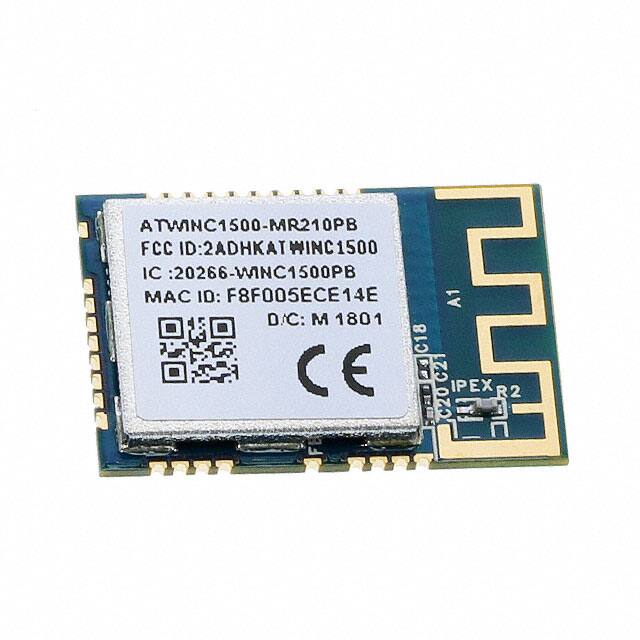

The Microchip Technology ATWINC1500-MR210PB1961 is a WiFi RF transceiver module operating at 2.4GHz. It features a data rate of 72.2Mbps and a surface mount package.
| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
142 pcs
|
142 pcs | On Request | 1 | On Request | On Request | On Request | On Request | 2026-02-16 21:33:16 |
| Category | |
| Manufacturer Name | |
| Antenna Type | |
| Current | |
| Data Rate | |
| Frequency | |
| Memory Size | |
| Modulation | |
| Mounting Type | |
| Operating Temperature | |
| Power | |
| Protocol | |
| RF Family | |
| Sensitivity | |
| Serial Interfaces | |
| Tape & Reel | |
| Voltage |
The ATWINC1500-MR210PB1952 from Microchip Technology is an integrated RF transceiver module designed for WiFi applications. It operates in the 2.4GHz frequency band and supports the 802.11b/g/n wireless standards, offering a maximum data rate of 72.2Mbps.
This module features a trace antenna and is suitable for surface mount applications. It requires an operating voltage between 2.7V and 3.6V and consumes approximately 61mA of current. Key electrical characteristics include a transmit power of 18.5dBm and a receiver sensitivity of -95dBm. It supports various modulation schemes such as 16-QAM, 64-QAM, BPSK, CCK, DBPSK, DQPSK, OFDM, and QPSK.
Connectivity is provided through I²C, SPI, and UART serial interfaces. The module is equipped with 4MB of Flash memory and 128kB of RAM. It is designed to operate within a temperature range of -40°C to 85°C. The ATWINC1500-MR210PB1952 is RoHS3 compliant and has a Moisture Sensitivity Level (MSL) of 1.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The operating voltage is between 2.7V and 3.6V.
The ATWINC1500-MR210PB1952 is a module package designed for surface mounting.
The operating temperature range is -40°C to 85°C.
The RoHS status is RoHS3 Compliant.
