Mfr Part #:

ANT-GNCP-C25L15100

Name: ANT-GNCP-C25L15100
Brand: Linx Technologies Inc.
SKU: ANT-GNCP-C25L15100

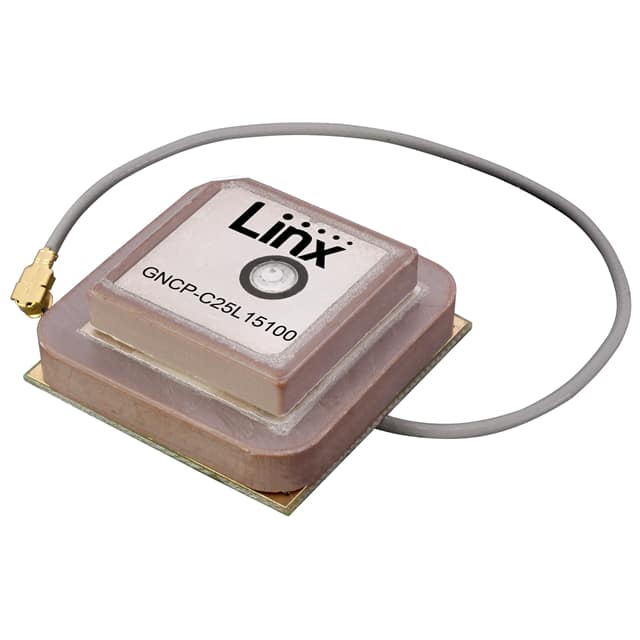

RF ANT GNSS GPS L1L5 25X25 LNA

Stock on Request

ANT-GNCP-C25L15100 Description

Short technical summary and product information.

RF ANT GNSS GPS L1L5 25X25 LNA

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

Category	RF Antennas
Manufacturer Name	Linx Technologies Inc.
Antenna Type	Ceramic Patch
Applications	Beidou, COMPASS, GALILEO, GLONASS, GPS, IRNSS, NavIC, Qzss
Features	Cable - 100mm
Frequency (Center	1.176GHz, 1.561GHz, 1.575GHz, 1.601GHz
Frequency Group	UHF (1GHz ~ 2GHz)
Frequency Range	1.164GHz ~ 1.189GHz, 1.559GHz ~ 1.606GHz
Gain	26.8dBi, 25.3dBi, 26.6dBi, 24.4dBi
Height (Max)	0.472" (12.00mm)
Mounting Type	Surface Mount
Number of Bands	4
RF Family	Navigation
Return Loss	-11.2dB, -18.1dB, -18.1dB, -20.7dB
Termination	U.FL
VSWR	1.8, 1.3, 1.3, 1.2
