Mfr Part #:

ANT-GNCP-C185L160

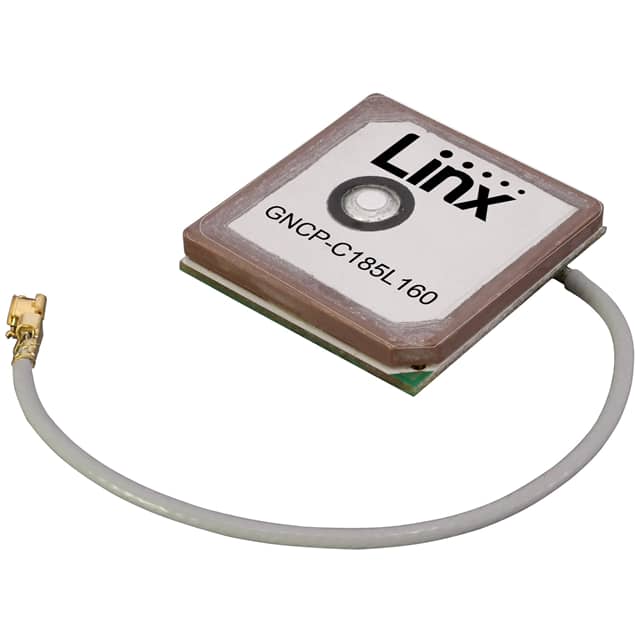

Name: ANT-GNCP-C185L160
Brand: Linx Technologies Inc.
SKU: ANT-GNCP-C185L160

Description:

RF ANT GNSS GPS L1 18X18 LNA UFL

Stock on Request

ANT-GNCP-C185L160 Description

Short technical summary and product information.

RF ANT GNSS GPS L1 18X18 LNA UFL

Mfr Standard Lead Time: 12 weeks (varies by distributor)

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

Category	RF Antennas
Manufacturer Name	Linx Technologies Inc.
Antenna Type	Ceramic Patch
Applications	Beidou, COMPASS, GALILEO, GLONASS, GPS, IRNSS, NavIC, Qzss
Features	Cable - 60mm
Frequency (Center	1.561GHz, 1.575GHz, 1.601GHz
Frequency Group	UHF (1GHz ~ 2GHz)
Frequency Range	1.559GHz ~ 1.606GHz
Gain	8.2dBi, 13.7dBi, 9.2dBi
Height (Max)	0.177" (4.50mm)
Mounting Type	Surface Mount
Number of Bands	3
RF Family	Navigation
Return Loss	-13.1dB, -11.9dB, -11.8dB
Termination	U.FL
VSWR	1.6, 1.7, 1.7
