AHV12VN4KV1MAW
Analog Technologies
The Analog Technologies AHV12VN4KV1MAW is a high voltage DC DC converter module. It features a 12V input and can provide an output voltage up to -4kV.
| Category | |
| Manufacturer Name | |
| Applications | |
| Current | |
| Efficiency | |
| Height | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Type | |
| Voltage | |
| Width |

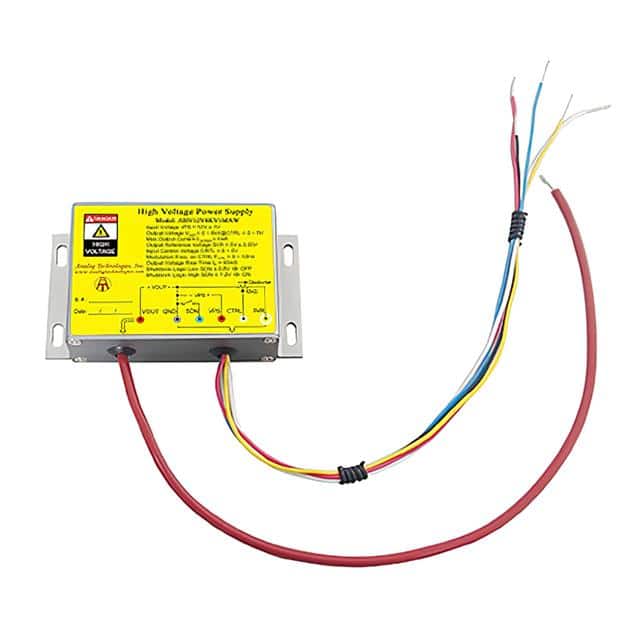

The Analog Technologies AHV12VN3KV1MAW is a high voltage power supply module designed for DC-DC conversion from low voltage to high voltage. It features an input power voltage of 12V ± 1V and an input current range of 80mA to 360mA. The module provides an adjustable output voltage from 0 to -3kV, controlled via a 0-5V input control voltage, with a maximum output current of 1mA. It also includes a 5V ± 0.05V reference voltage and electronic shutdown control.
This power supply module is enclosed and designed for chassis mounting. It operates within a temperature range of -10°C to 55°C and has dimensions of 104.4mm L x 59.9mm W x 27.9mm H. The unit boasts zero EMIs and good heat sinking due to its metal enclosure.
Applications for the AHV12VN3KV1MAW include X-ray machines, spectral analysis, semiconductor manufacturing equipment, particle accelerators, and electrospinning for nanofiber preparation.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The input voltage range is 11V to 13V, with a nominal input of 12V.
The maximum output voltage is -3kV, and the maximum output current is 1mA.
The output voltage is controlled by an input control voltage ranging from 0V to 5V, where VOUT = 600 * VCTRL.
The operating temperature range is -10°C to 55°C.
This power supply module is designed for chassis mounting.
