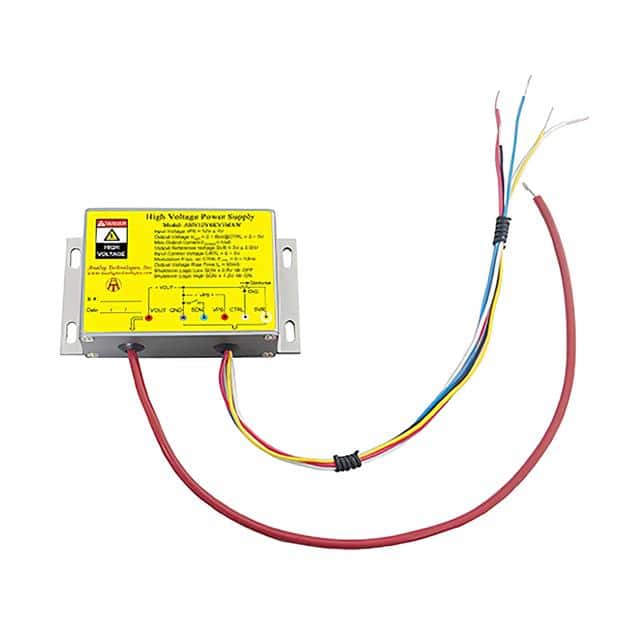

The Analog Technologies AHV12VN7KV1MAW is a high voltage DC DC converter designed for applications requiring precise high voltage generation. It accepts an input power voltage of 12V ± 1V and can deliver an output voltage ranging from 0 to -7kV, controlled by an input voltage between 0 to 5V. The maximum output current is limited to 1mA.
This module features electronic shutdown control and offers zero EMIs with good heat sinking due to its metal enclosure. It is suitable for chassis mounting and operates within a temperature range of -10°C to 55°C.
Key specifications include an input current range of 160mA to 830mA and a reference voltage of 5V ± 0.05V. The dimensions are 104.4mm x 59.9mm x 27.9mm.
Applications for the AHV12VN7KV1MAW include X-ray machines, spectral analysis, semiconductor manufacturing equipment, particle accelerators, and electrospinning for nanofiber preparation.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The maximum output voltage is -7kV.
The input power voltage range is 12V ± 1V.
The maximum output current is 1mA.
The output voltage is controlled by an input control voltage ranging from 0 to 5V.
The operating temperature range is -10°C to 55°C.
This component is RoHS3 Compliant.
The Moisture Sensitivity Level is 1 Unlimited.
