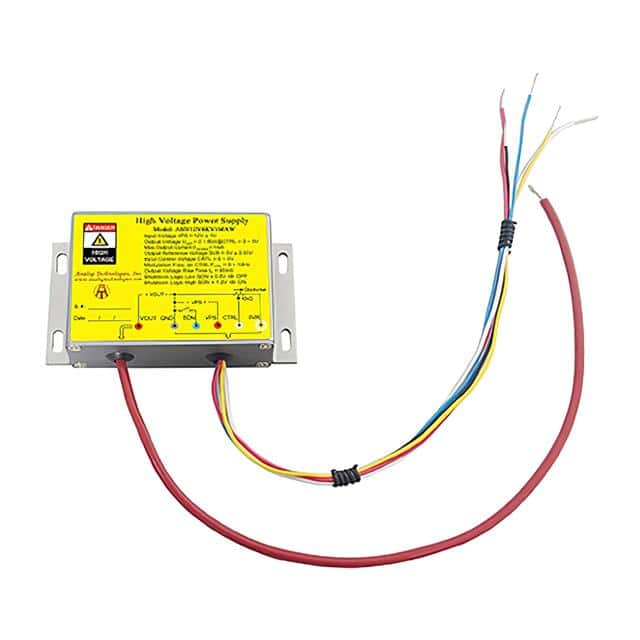

The Analog Technologies AHV12VN4KV1MAW is a high voltage DC DC converter designed for applications requiring a conversion from low voltage to high voltage. This enclosed module features a chassis mount for easy integration into systems.
Key electrical specifications include an input power voltage range of 11V to 13V, with an input current ranging from 110mA to 480mA. The output voltage can be precisely controlled from 0V to -4kV via an input control voltage of 0V to 5V, with a maximum output current of 1mA. A reference voltage of 5V ± 0.05V is also provided. The module operates with an efficiency of 70% and has a specified operating temperature range of -10°C to 55°C.
Physical dimensions are 104.4mm in length, 59.9mm in width, and 27.9mm in height. The unit has a single output and is designed for ITE (Commercial) applications. It also includes electronic shutdown control and benefits from a metal enclosure for zero EMIs and good heat sinking.
This power module is suitable for various demanding applications such as X-ray machines, spectral analysis, semiconductor manufacturing equipment, and particle accelerators.
