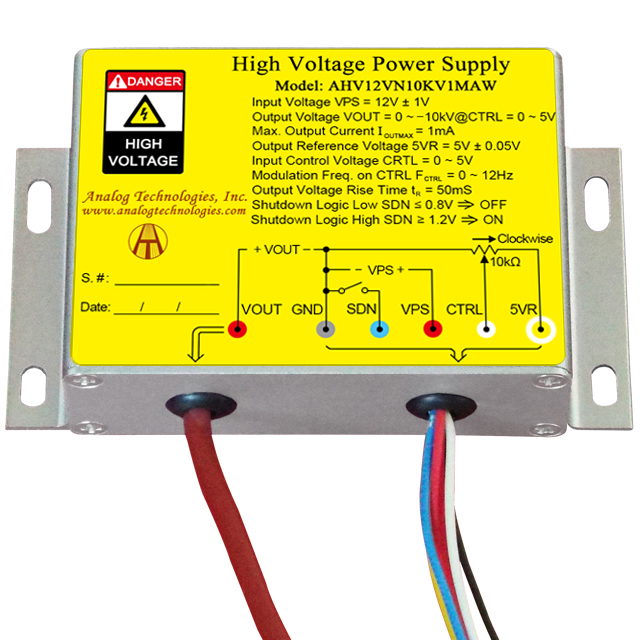

The AHV12VN10KV1MAW from Analog Technologies is a high voltage DC-DC power supply module designed for converting low voltage to high voltage.
Key electrical specifications include an input voltage range of 11V to 13V (nominal 12V ± 1V) and an input current range of 350mA to 1.2A. The module offers an adjustable output voltage from 0 to -10kV, controlled by an input control voltage of 0 to 5V. The maximum output current is limited to 1mA. It also features a reference voltage of 5V ± 0.05V and electronic shutdown control.
This power module is enclosed and designed for chassis mounting. It operates within a temperature range of -10°C to 55°C and boasts zero EMIs with good heat sinking provided by its metal enclosure. The dimensions are 104.4mm x 59.9mm x 27.9mm.
Applications for this power module include X-ray machines, spectral analysis, nondestructive inspection, semiconductor manufacturing equipment, particle accelerators, and physical vapor phase deposition.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The input voltage range is 11V to 13V, with a nominal value of 12V ± 1V.
The output voltage can be adjusted from 0 to -10kV, with a maximum output current of 1mA.
The output voltage is controlled by an input control voltage ranging from 0 to 5V, with the output voltage being 2000 times the control voltage.
The operating temperature range is -10°C to 55°C.
This is an enclosed power supply module designed for chassis mounting.
Yes, it features electronic shutdown control.
