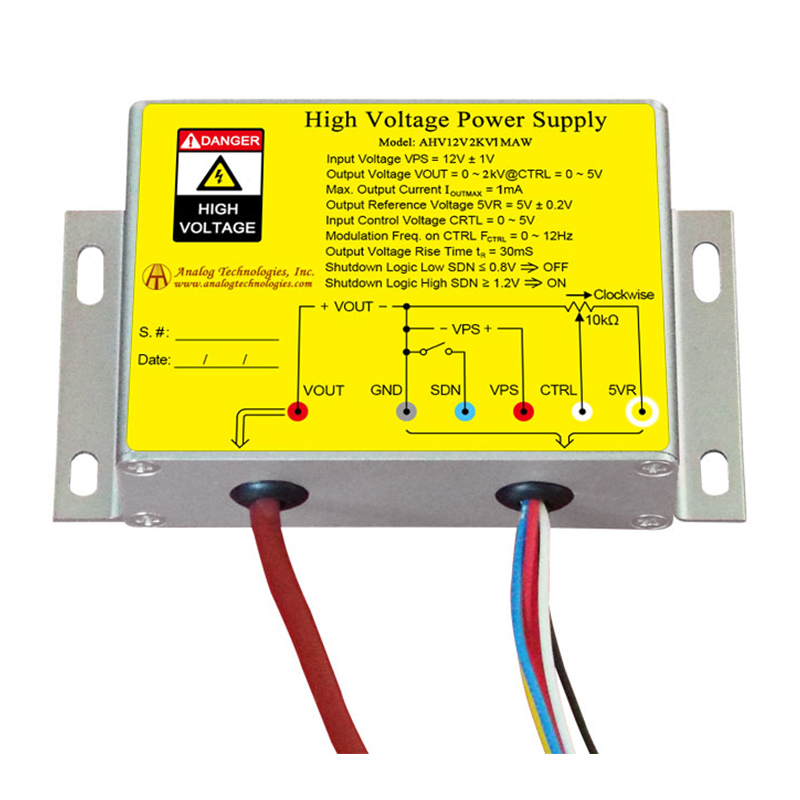

The AHV12V2KV1MAW from Analog Technologies is an enclosed, chassis-mount DC-DC converter designed for high voltage applications. It accepts an input power voltage of 12V ± 1V and provides an adjustable output voltage ranging from 0 to 2kV, controlled via an input voltage of 0 to 5V. The maximum output current is 1mA.
This power module is suitable for various scientific research and industrial fields, including X-ray machines, spectral analysis, semiconductor manufacturing equipment, and particle accelerators. It features electronic shutdown control and a metal enclosure for zero EMIs and good heat sinking. The operating temperature range is -10°C to 55°C.
Key electrical specifications include an input current range of 50mA to 240mA and a reference voltage of 5V ± 0.05V. The efficiency is rated at 70%. The physical dimensions are 104.4mm in length, 59.9mm in width, and 27.9mm in height.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The output voltage can be adjusted from 0V to 2kV.
The input power voltage is 12V ± 1V.
The maximum output current is 1mA.
The operating temperature range is -10°C to 55°C.
The output voltage is controlled by an input control voltage ranging from 0 to 5V.
It is designed for chassis mounting.
