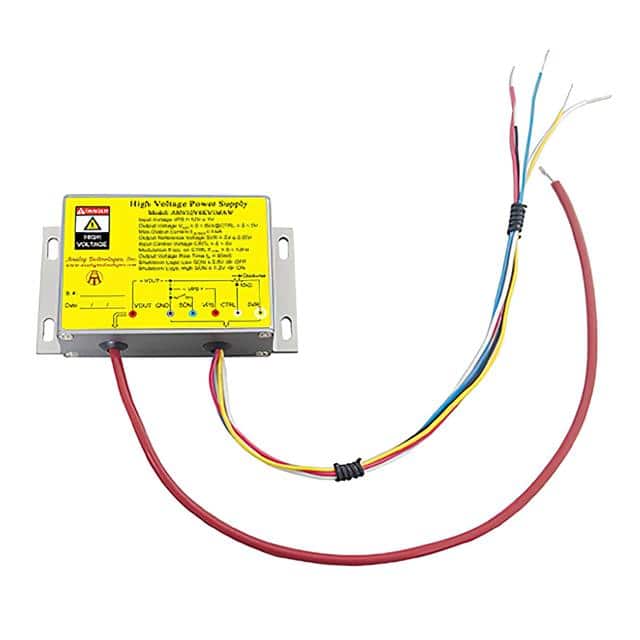

The Analog Technologies AHV12VN2KV1MAW is a high voltage DC DC converter module designed for applications requiring a power supply source that converts low voltage to high voltage. This enclosed unit features a chassis mount for easy integration into systems.
Key electrical specifications include an input power voltage range of 11V to 13V, with an input current range from 50mA to 240mA. The module can deliver an output voltage from 0V to -2kV, with a maximum output current of 1mA. It also features a reference voltage of 5V ± 0.05V and an input control voltage range of 0V to 5V. The operating temperature range is -10°C to 55°C.
This power module is suitable for various scientific research and industrial fields, including X-ray machines, spectral analysis, semiconductor manufacturing equipment, particle accelerators, and electrospinning. Its metal enclosure provides zero EMIs and good heat sinking.
Dimensions are 104.4mm in length, 59.9mm in width, and 27.9mm in height. The unit has a typical efficiency of 70% and offers electronic shutdown control.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The input power voltage range is 11V to 13V.
The maximum output voltage is -2kV.
The maximum output current is 1mA.
The operating temperature range is -10°C to 55°C.
It is a chassis mount type.
The dimensions are 104.4mm x 59.9mm x 27.9mm.
