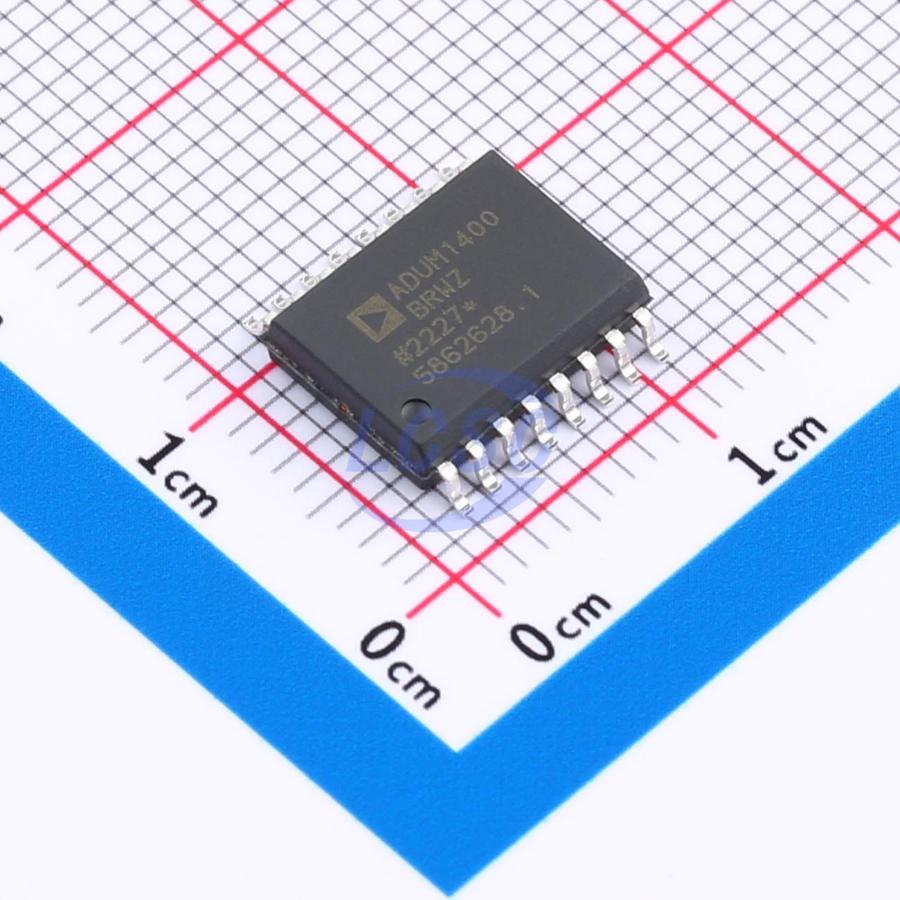

The ADUM1400BRWZ-RL is a quad-channel digital isolator based on Analog Devices' iCoupler® technology. It combines high-speed CMOS and monolithic transformer technology to provide superior performance over traditional optocouplers, eliminating design challenges related to current transfer ratios and temperature effects.
This isolator supports bidirectional communication and 3 V/5 V level translation, with a high data rate of up to 90 Mbps (NRZ). It offers precise timing characteristics, including a maximum pulse width distortion of 2 ns and channel-to-channel matching of 2 ns. The device boasts high common-mode transient immunity of greater than 25 kV/μs and can operate at high temperatures up to 125°C.
Designed for applications requiring multichannel isolation, such as SPI interfaces, data converters, and industrial field buses, the ADUM1400BRWZ-RL is qualified for automotive applications. It is available in a 16-lead SOIC wide body package, suitable for surface mount assembly.
Key electrical specifications include low power consumption, with maximum current draw ranging from 0.7 mA per channel at 3 V/0-2 Mbps to 31 mA per channel at 5 V/90 Mbps. Safety and regulatory approvals include UL recognition at 2500 V rms for 1 minute and VDE certification with a peak working voltage of 560 V.
| Qty | Low | High |
|---|---|---|
| 1+ | $4.83 | $4.83 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The maximum data rate for the ADUM1400BRWZ-RL is 90 Mbps (NRZ).
The ADUM1400BRWZ-RL has an isolation voltage rating of 2500 V rms for 1 minute per UL 1577.
The maximum operating temperature for the ADUM1400BRWZ-RL is 125°C.
The ADUM1400BRWZ-RL is supplied in a 16-lead SOIC wide body package.
At 5V operation, power consumption is 1.0 mA/channel (0-2 Mbps), 3.5 mA/channel (10 Mbps), and 31 mA/channel (90 Mbps).
The peak working voltage for the ADUM1400BRWZ-RL is 560 V peak.
