| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2,000 pcs
|
2000 pcs | On Request | 1 | On Request | On Request | 20+ | On Request | On Request | |
|
420 pcs
|
420 pcs | On Request | 1 | On Request | On Request | 24+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Automotive Grade | |
| Bandwidth | |
| Height | |
| Industrial Grade | |
| Lead Spacing | |
| Lead Style | |
| Length | |
| Medical Grade | |
| Military Grade | |
| Mounting Style | |
| Noise | |
| Number of Channels | |
| Tape & Reel |

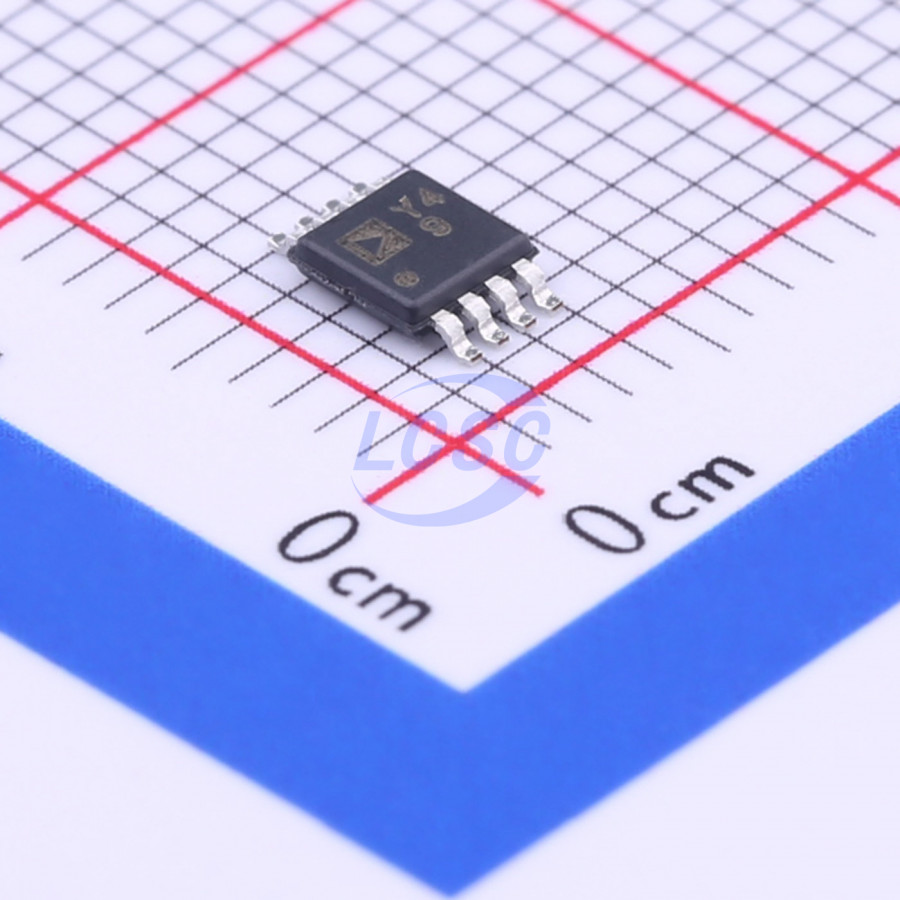

The Analog Devices AD8421ARMZ-R7 is a high-performance instrumentation amplifier designed for precision measurement applications. It offers a single channel with a wide operating supply voltage range of 5V to 36V and a dual supply voltage of +/-18V.
Key electrical specifications include a bandwidth of 10 MHz, a common-mode rejection ratio (CMRR) of 140 dB, and a low input bias current of 0.1 nA. The device also boasts a low input offset voltage of 25 uV and a noise density of 3 nV/√Hz.
Packaged in an MSOP-8 surface-mount configuration, the AD8421ARMZ-R7 is suitable for various electronic designs. It operates within a temperature range of -40 C to +85 C. The amplifier's robust design and specifications make it ideal for applications requiring accurate signal amplification.
| Qty | Low | High |
|---|---|---|
| 1+ | $9.80 | $9.80 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The AD8421ARMZ-R7 operates from a supply voltage of 5 V to 36 V.
The bandwidth of the AD8421ARMZ-R7 is 10 MHz.
The AD8421ARMZ-R7 is available in an MSOP-8 package.
The AD8421ARMZ-R7 operates in a temperature range of -40 C to +85 C.
The RoHS status is RoHS3 Compliant.
The Moisture Sensitivity Level (MSL) is 1 Unlimited.
