The Infineon 6EDL04N02PR is a second-generation three-phase gate driver IC from the 6ED family, capable of controlling power devices in 3-phase systems with a maximum blocking voltage of +600 V. It utilizes Infineon's thin-film-SOI-technology for excellent ruggedness against transient voltages and prevents parasitic latch-up.
Key electrical characteristics include an output source/sink current of +0.165 A / -0.375 A and typical turn-on/off delay times of 60 ns / 26 ns at 1 nF load capacitance. The device supports CMOS and LSTTL compatible inputs with negative logic. It also includes integrated features such as over-current protection, under-voltage detection, and an integrated bootstrap diode.
This gate driver is suitable for applications in home appliances, refrigeration compressors, air-conditioning, fans, pumps, motor drives, general-purpose inverters, power tools, and light electric vehicles. It is qualified for industrial applications according to JEDEC standards.

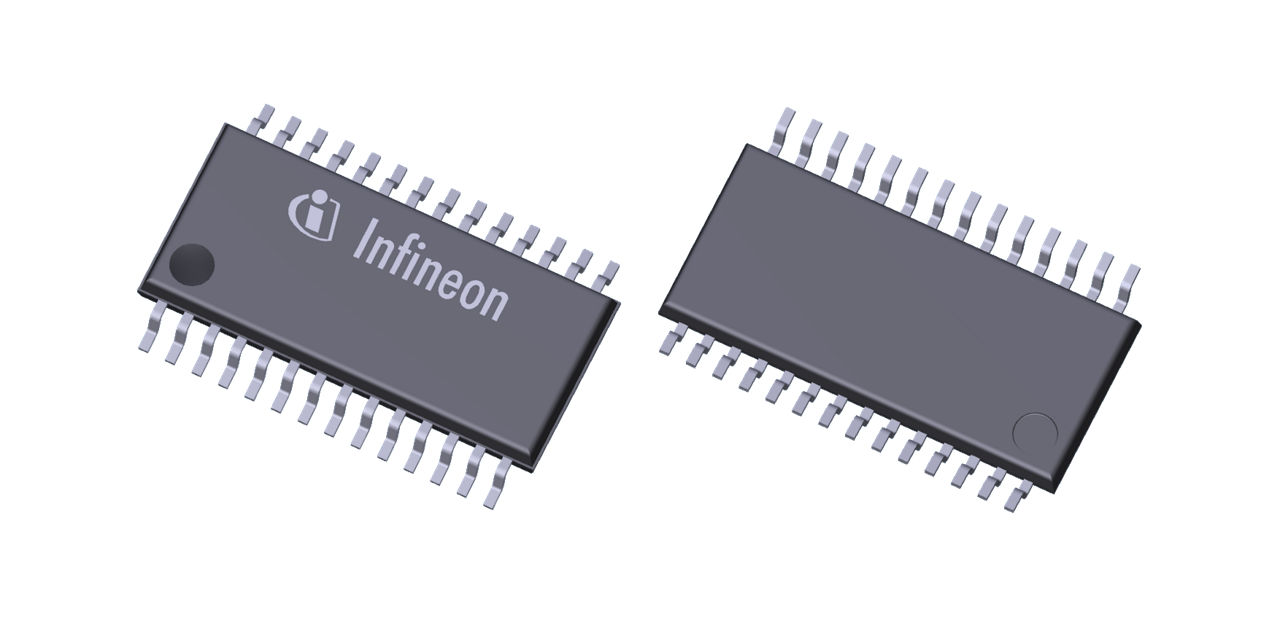

The 6EDL04N02PR is available in DSO-28 and TSSOP-28 surface mount packages.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.01 | $2.01 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
600 V.
200 V.
Source current of 0.165 A and sink current of 0.375 A.
Turn-on delay of 60 ns and turn-off delay of 26 ns with a 1 nF load.
CMOS and LSTTL with negative logic.
DSO-28 and TSSOP-28 surface mount packages.
Surface mount.
