| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
45,140 pcs
|
45140 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
6,216 pcs
|
6216 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Halogen Free | |
| Mounting Type |

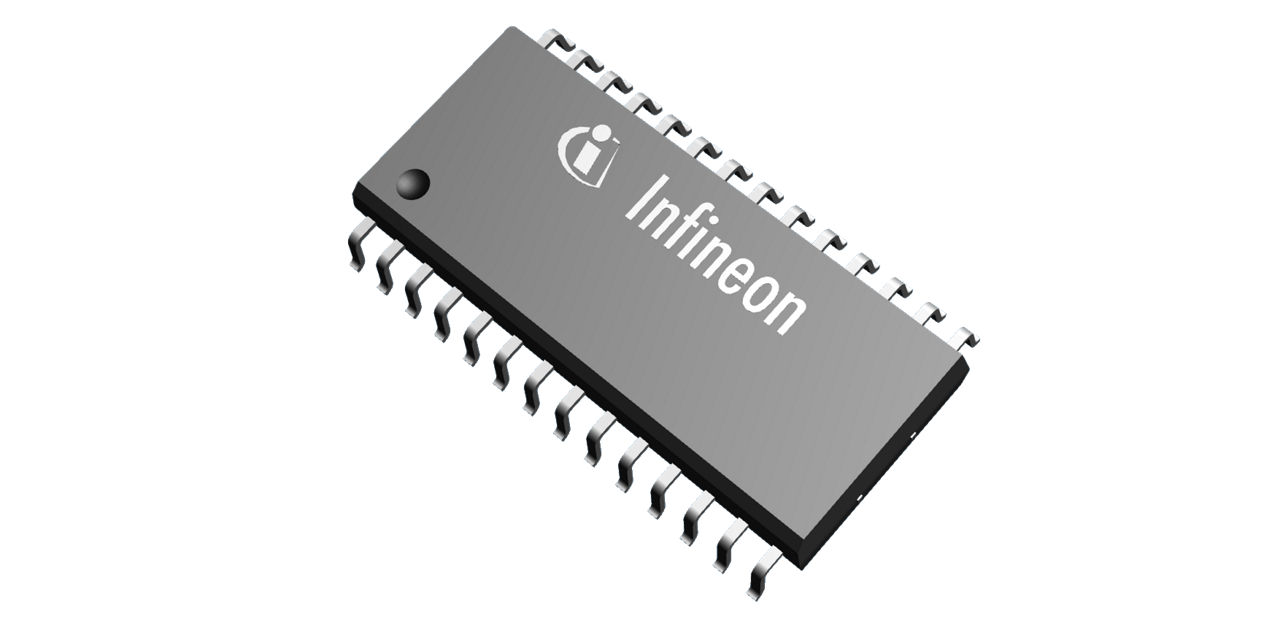

The Infineon 6ED003L06-F2 is a 600V three-phase gate driver designed for controlling power devices like MOSFETs or IGBTs in 3-phase systems. It utilizes Infineon's thin-film SOI technology, providing excellent ruggedness against transient voltages and preventing parasitic latch-up.
Key electrical specifications include a maximum blocking voltage of 600V and output source/sink current capabilities of +0.165A/-0.375A. The device supports 3.3V logic signals and includes integrated features such as over-current detection, under-voltage lockout, and fault reporting.
This gate driver is available in DSO-28 and TSSOP-28 packages, suitable for surface mount applications. Potential applications include home appliances, refrigeration compressors, air-conditioning units, fans, pumps, motor drives, and general-purpose inverters.
Note: This part family is not recommended for new designs; Infineon recommends the 6EDL04I065NT for new designs.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.01 | $2.01 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The maximum blocking voltage is 600 V.
The typical output source current is +0.165 A and the typical sink current is -0.375 A.
The device is compatible with logic signals down to 3.3 V.
The 6ED003L06-F2 is available in DSO-28 and TSSOP-28 packages.
No, the 6ED003-F2 family is not recommended for new designs.
