| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
12,500 pcs
|
12500 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
75 pcs
|
75 pcs | On Request | 1 | On Request | On Request | 1739 | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Contact Finish | |
| Contact Material | |
| Gender | |
| Insulation | |
| Length | |
| Mounting Type | |
| Overall Length | |
| Tab Length | |
| Tab Thickness | |
| Tab Width | |
| Terminal Type | |
| Termination |

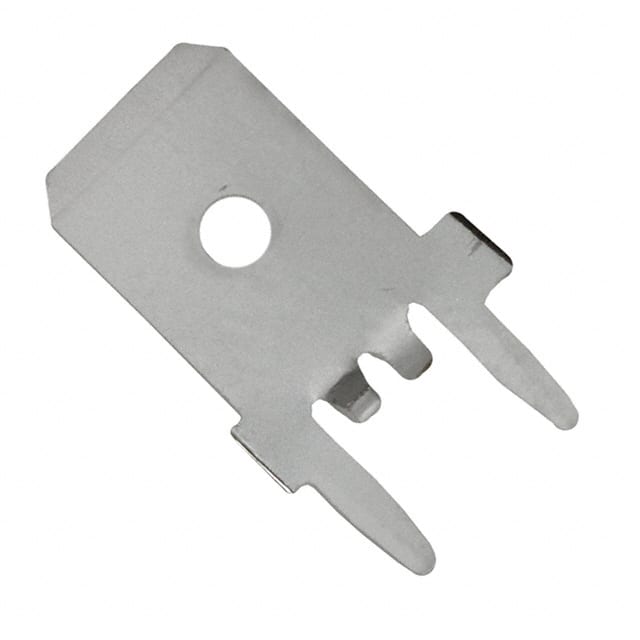

The TE Connectivity 63824-1 is a standard male quick connect tab terminal designed for solder termination. It has a tab width of 0.250" (6.35mm), tab thickness of 0.032" (0.81mm), and tab length of 0.312" (7.92mm). The overall length is 14.02mm (0.552").
The terminal is non-insulated and constructed from a brass contact with a tin finish. It is intended for through-hole mounting and solder termination, making it suitable for applications requiring a reliable, low-resistance connection.
This component is RoHS3 compliant and REACH unaffected, with an MSL rating of 1 (unlimited). It is available in tape and reel packaging.
| Qty | Low | High |
|---|---|---|
| 10,000+ | $0.06 | $0.06 |
| 30,000+ | $0.05 | $0.05 |
| 50,000+ | $0.04 | $0.04 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The tab width is 0.250" (6.35mm).
The tab thickness is 0.032" (0.81mm).
The overall length is 14.02mm (0.552").
No, it is non-insulated.
The contact material is brass with a tin finish.
Through hole mounting with solder termination.
Yes, it is RoHS3 compliant (unverified).
