| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
9,775 pcs
|
9775 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
3,800 pcs
|
3800 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
3,000 pcs
|
3000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
1,100 pcs
|
1100 pcs | On Request | 1 | On Request | On Request | 2026-02-25 06:16:38 | On Request | On Request | |
|
977 pcs
|
977 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
6 pcs
|
6 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Contact Finish | |
| Contact Material | |
| Gender | |
| Insulation | |
| Lead Style | |
| Length | |
| Material Thickness | |
| Mounting Hole Diameter | |
| Mounting Type | |
| Overall Length | |
| Tab Length | |
| Tab Thickness | |
| Tab Width | |
| Terminal Type | |
| Termination | |
| Termination Style |

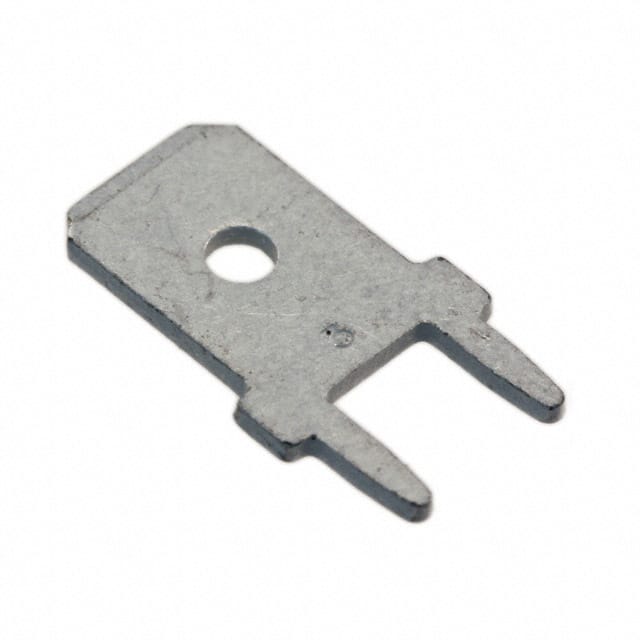

The Keystone Electronics 1287 is a standard male quick connect tab terminal featuring a 0.250" (6.35mm) tab width and 0.032" (0.81mm) tab thickness. The overall length is 14.02mm (0.552"). The contact is made of brass with a tin plating, providing good conductivity and solderability.
This non-insulated terminal is designed for through hole mounting with a 0.052" (1.3mm) mounting hole diameter. The termination style is solder, making it suitable for permanent PCB or panel connections. The material thickness is 0.032" (0.80mm).
Typical applications include power distribution, automotive wiring, and industrial control panels where a reliable, quick-connect interface is required. The tab length of 0.312" (7.92mm) ensures secure mating with standard 0.250" female quick disconnect receptacles.
The tab width is 0.250" (6.35mm).
Through hole mounting with a 0.052" (1.3mm) diameter mounting hole.
Brass with a tin finish.
No, it is non-insulated.
14.02mm (0.552").
