| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
26 pcs
$0.29
|
26 pcs |
$0.29
|
1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Contact Finish | |
| Contact Material | |
| Gender | |
| Insulation | |
| Lead Style | |
| Length | |
| Material Thickness | |
| Mounting Hole Diameter | |
| Mounting Type | |
| Overall Length | |
| Tab Length | |
| Tab Thickness | |
| Tab Width | |
| Terminal Type | |
| Termination | |
| Termination Style |

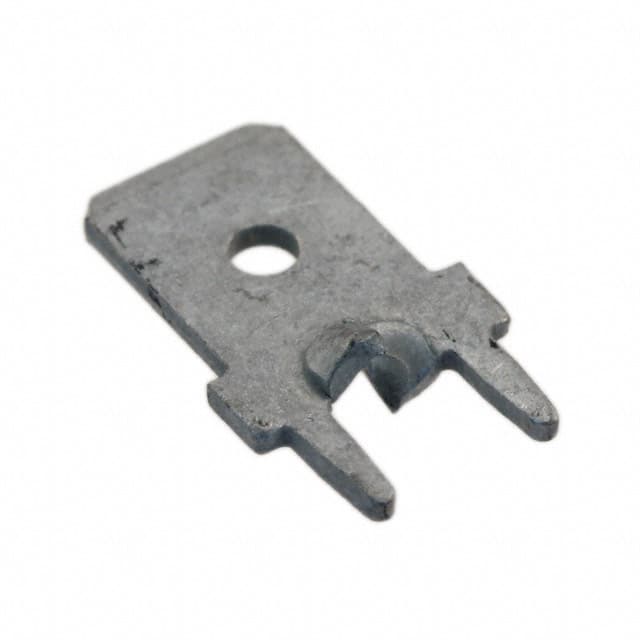

The Keystone Electronics 1287-ST is a standard male quick connect tab featuring a tab width of 0.250" (6.35mm) and a tab thickness of 0.032" (0.81mm). The tab length is 0.312" (7.92mm) with an overall length of 14.02mm (0.552"). This non-insulated terminal is constructed from brass with a tin-plated finish, ensuring reliable conductivity and corrosion resistance.
Designed for through hole mounting with a solder termination style, the 1287-ST requires a mounting hole diameter of 0.052" (1.3mm). The contact material thickness is 0.032" (0.80mm). This quick connect tab is suitable for applications requiring a secure, solderable connection in a compact form factor.
The part is RoHS compliant and REACH unaffected, with an MSL rating of 1 (unlimited). It is manufactured by Keystone Electronics, a trusted supplier of interconnect components and hardware.
The tab width is 0.250" (6.35mm).
Through hole mounting with solder termination.
Yes, it is listed as RoHS compliant.
Brass contact with tin finish.
The overall length is 14.02mm (0.552").
