Mfr Part #:

534-272

Mfr Name: RS

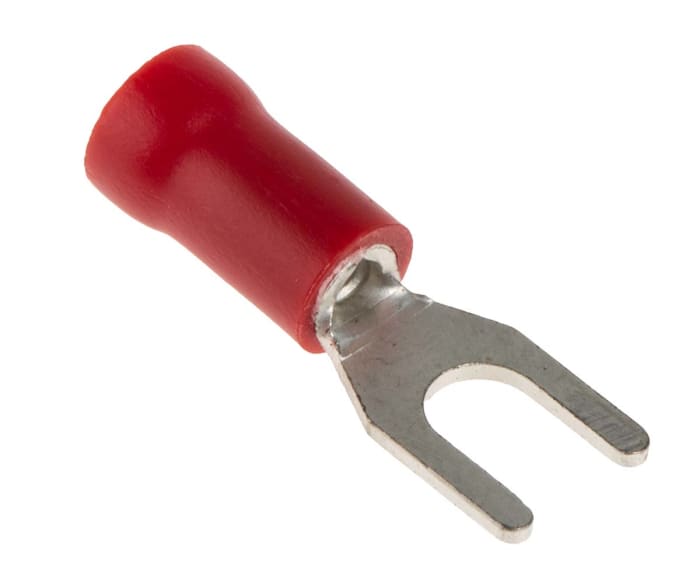

This RS PRO insulated crimp spade connector is designed for wire termination without soldering. It supports wire sizes from 22 AWG to 16 AWG and features an M3.5 stud size.

✓ Total Stock: 200 pcs

$ Price Range: $0.10

534-272 Available from 1 distributor

✓ Authorised

✓ Non-Authorised

Distributor		Stock	Pricing	MOQ	PKG	Lead Time	Date Code	On Order Quantity	On Order Delivery
Fe Components ✓ Non-Authorised Inventory information	200 pcs On Request	200 pcs	On Request	100	On Request	On Request	On Request	On Request	On Request

534-272 Specifications Quick View

Most important parameters for selection – full specs in datasheet.

SELECT ALL

Category	New Products
Manufacturer Name	RS
Contact Material	Copper
Contact Plating	Tin
Country of Origin	Taiwan, Province Of China
Insulation Material	Vinyl
Thickness	0.8 mm
Width	6.4 mm

View Similar Products (0)

534-272 Description

Short technical summary and product information.

The RS PRO 534-272 is an insulated crimp spade connector, offering a reliable solution for connecting wires to studs and bus bars without the need for soldering. It is constructed with durable copper that is tin-plated for enhanced conductivity and corrosion resistance.

The connector is designed to accommodate wire sizes ranging from 22 AWG to 16 AWG (0.5mm² to 1.5mm²). It features an M3.5 stud size and a vinyl insulation material for safety and longevity. The connector has a width of 6.4mm, a thickness of 0.8mm, and an overall length of 20mm.

This spade connector is color-coded red, corresponding to its wire size range. It is manufactured in Taiwan, Province of China. The product is supplied in a standard package of 100 units.

534-272 Quick Information

Product Type: Crimp Spade Connector

Canonical Name: RS PRO Insulated Crimp Spade Connector

Subcategory: Fork Terminals

534-272 Compliance

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

534-272 Estimated Pricing

Qty	Low	High
1+	$0.10	$0.10

Estimated market price range - modelled values for guidance only, not live distributor offers.

534-272 Features

Insulated crimp spade connector for easy wire termination.
Supports wire sizes from 22 AWG to 16 AWG.
M3.5 stud size for secure connections.
Durable copper contacts with tin plating.
Vinyl insulation for safety and longevity.

534-272 Applications

Ideal for connecting wires to studs.
Suitable for bus bar connections.
Used in various electrical termination applications.

534-272 FAQs

6 frequently asked questions generated from this part’s specifications.

What wire sizes can this connector accommodate?

This connector accommodates wire sizes from 22 AWG to 16 AWG, which is equivalent to 0.5mm² to 1.5mm².

What is the stud size for this spade connector?

The stud size for this connector is M3.5.

What material are the contacts made of and how are they plated?

The contacts are made of copper and are plated with tin.

What is the insulation material and color of this connector?

The insulation material is vinyl and the color is red.

What are the main dimensions of this spade connector?

The connector has a width of 6.4mm, a thickness of 0.8mm, and an overall length of 20mm.

Where is this connector manufactured?

This connector is manufactured in Taiwan, Province Of China.
