| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
4,500 pcs
|
4500 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Contact Material | |
| Contact Plating | |
| Country of Origin | |
| Current Rating | |
| Housing Material | |
| Mounting Type | |
| Number of Contacts | |
| Number of Rows | |
| Orientation | |
| Pitch | |
| Termination Style |

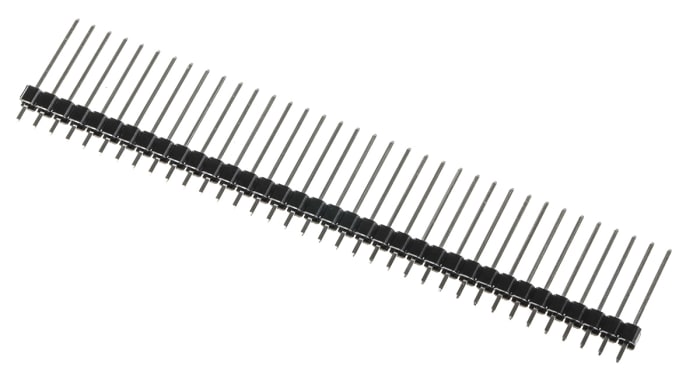

This RS PRO 251-8351 is an unshrouded straight through hole pin header designed for PCB applications. It features 36 contacts arranged in a single row with a standard 2.54mm pitch. The male contacts are made of brass with tin plating, and the housing is constructed from Polybutylene Terephthalate (PBT).
The header has a straight orientation and a through-hole mount type with a solder termination. The tail pin length is 3.06mm, and the mating pin length is 12.7mm. It operates within a temperature range of -65°C to 125°C and has a current rating of 1A. The contacts are 0.635mm square pins, suitable for general universal connections.
PCB headers are essential components for connecting two printed circuit boards together, offering an efficient and removable connection method. This header is ideal for prototyping and permanent solutions, saving time compared to direct soldering or complex wiring. Its unshrouded design allows for easy access and flexibility in certain applications.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The pitch of this pin header is 2.54 mm.
This pin header has 36 contacts.
The operating temperature range is -65°C to 125°C.
The current rating is 1A.
This pin header uses a through-hole mount type.
The contact material is brass, and the plating is tin.
