| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
9,197 pcs
|
9197 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Contact Plating | |
| Country of Origin | |
| Mounting Type | |
| Termination Style | |
| Thickness |

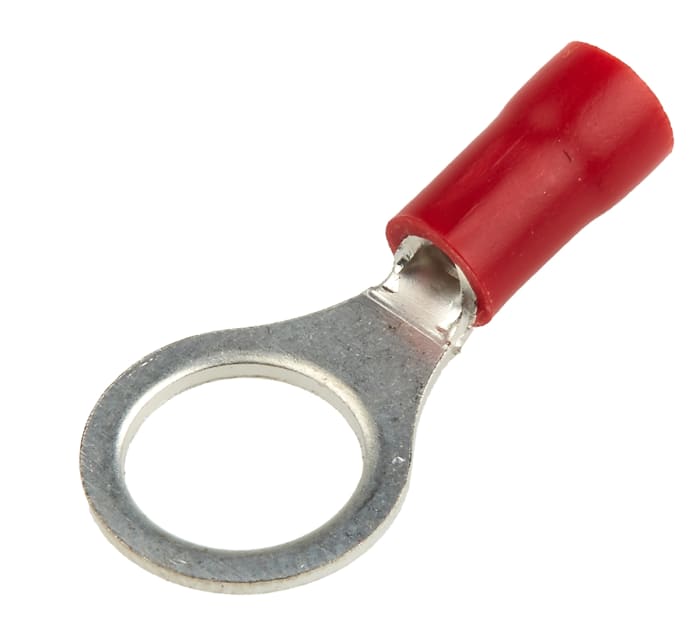

The RS PRO 208-2492 is a high-quality insulated crimp ring terminal, also known as a ring connector or cable lug. It is engineered for connecting electrical cables or wires to studs or posts on electrical components, such as battery terminals. The terminal body is constructed from highly conductive copper, tin-plated for enhanced electrical conductivity and corrosion resistance.
A color-coded vinyl insulation provides electrical protection and aids in quick identification of the terminal size. Once properly crimped, this ring terminal ensures a secure and reliable electrical connection. The inner ring diameter is 8.4mm, the outer ring diameter is 12.6mm, and the overall length is 26.7mm.
Typical applications for these insulated crimp ring wire connectors span various industries, including wiring in industrial control systems, industrial machines, automotive applications, communication equipment, power supplies, and domestic appliances. The maximum operating temperature for this terminal is 75°C.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The stud size is M8.
It accepts 22 AWG (0.5 mm²) to 16 AWG (1.5 mm²) wire.
The maximum operating temperature is 75 °C.
The inner ring diameter is 8.4 mm.
The contact plating is tin.
