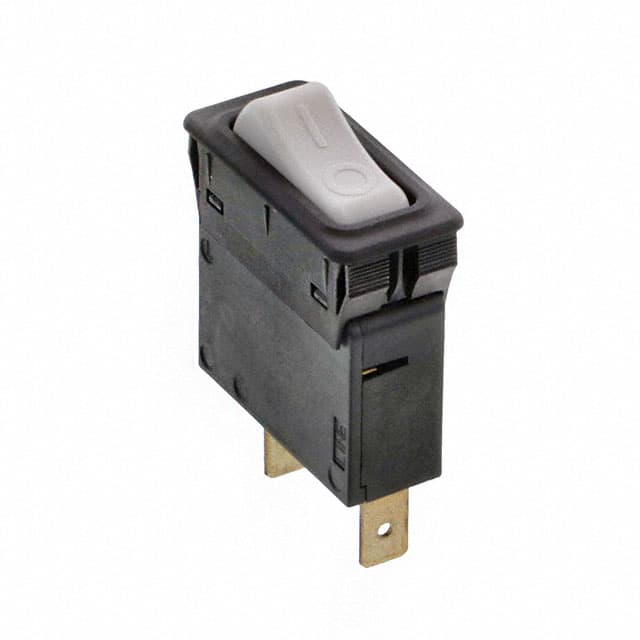

The Schurter Inc. 4435.0241 is a 1-pole thermal circuit breaker designed for equipment protection. It features a rocker actuation type and a panel mount configuration.
This circuit breaker operates with a rated AC voltage of 240 VAC (IEC) or 277 VAC (UL/CSA) and a DC voltage of 32 VDC. The AC current rating ranges from 0.05 A to 20 A, with this specific model rated at 10A. It has a conditional short circuit capacity of 2 kA at 240 VAC according to IEC 60934.
Key specifications include a mechanical lifetime of 50,000 switching cycles and electrical lifetimes of 30,000 cycles AC and 50,000 cycles DC. The operating temperature range is -30 °C to 60 °C. The degree of protection on the front side is IP40.
Applications for this type of circuit breaker include power tools, medical and laboratory equipment, industrial appliances, and commercial kitchen appliances. It offers high configurability options such as rocker colors and illumination.
The rated current is 10A AC.
It is rated for 240VAC (IEC), 277VAC (UL/CSA), and 32VDC.
The allowable operating temperature range is -30°C to 60°C.
The front side is rated IP40 according to IEC 60529.
The mechanical lifetime is 50,000 switching cycles.
The tripping type is thermal.
It is a single-pole (1-pole) circuit breaker.
