| Category | |
| Manufacturer Name | |
| Actuator Type | |
| Breaker Type | |
| Current Rating (Amps) | |
| Illumination | |
| Illumination Voltage (Nominal) | |
| Insulation Resistance | |
| Mounting Type | |
| Number of Poles | |
| Storage Temperature | |
| Voltage Rating | |
| Weight |

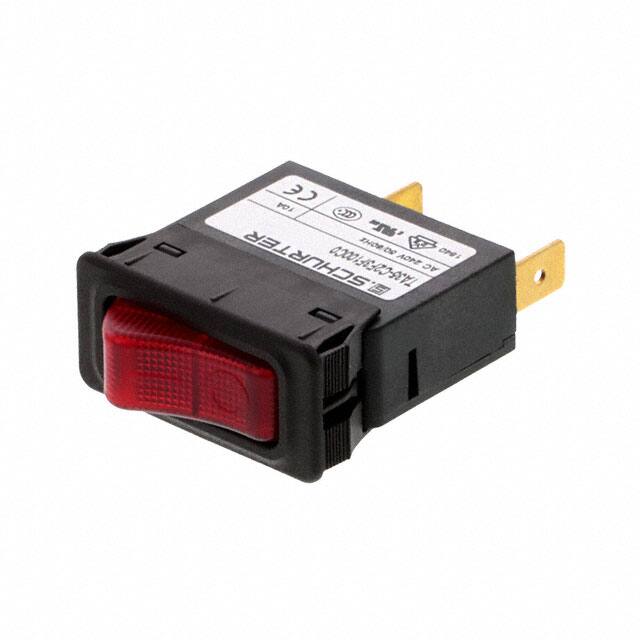

This Schurter TA35 series thermal circuit breaker, part number 4435.0177, is a 1-pole device designed for panel mounting. It offers a current rating of 10A and supports AC voltages up to 240V and DC voltages up to 32V.
The breaker features a rocker actuation type and a red illumination indicator. Its thermal tripping mechanism ensures reliable protection against overloads. The device is suitable for various industrial applications, including power tools, medical equipment, and industrial appliances.
Key technical specifications include a conditional short circuit capacity of 2 kA at 240 VAC, dielectric strength greater than 2.5 kV, and insulation resistance over 100 MΩ. The operating temperature range is -30°C to 60°C, with a mechanical lifetime of 50,000 switching cycles.
Designed for industrial environments, this circuit breaker meets IP40 protection on the front side. It is built for durability and consistent performance in demanding applications.
The 4435.0177 is rated for 240VAC under IEC standards and 277VAC under UL/CSA standards, with a DC rating of 32VDC.
The device utilizes a panel mount configuration for secure installation into equipment enclosures.
The breaker functions reliably within an ambient temperature range of -30°C to 60°C.
The unit guarantees a minimum of 50,000 mechanical switching cycles.
Yes, it handles a conditional short-circuit capacity of 2kA at 240VAC according to IEC 60934.
