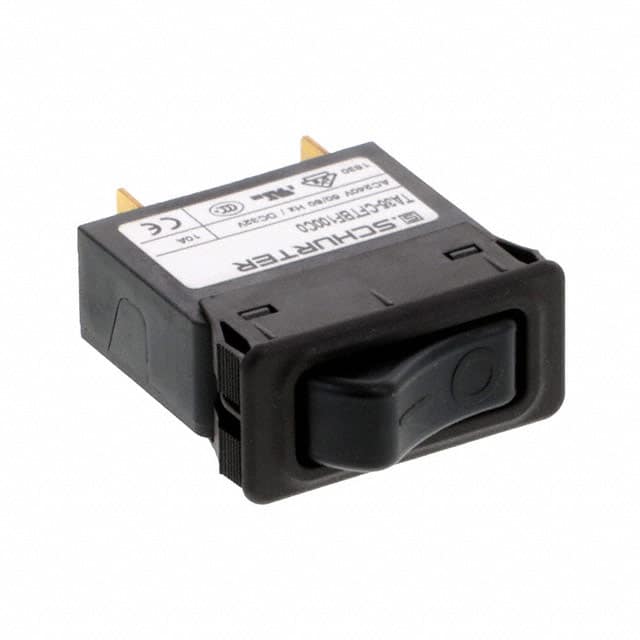

The Schurter Inc. 4435.0174 is a 1-pole thermal circuit breaker designed for reliable circuit protection. It features a rocker actuation type and a panel mount design, making it suitable for various industrial applications.
Key electrical specifications include a rated voltage of 240 VAC (IEC) and 277 VAC (UL/CSA), with a DC rating of 32 VDC. The current rating ranges from 0.05 to 20 A, with this specific model rated at 10A. It offers a conditional short circuit capacity of 2 kA at 240 VAC.
This circuit breaker operates within an allowable temperature range of -30 °C to 60 °C and has a mechanical lifetime of 50,000 switching cycles. The degree of protection on the front side is IP40.
Applications for this series include power tools, medical and laboratory equipment, industrial appliances, and commercial kitchen appliances.
The rated AC voltage is 240 V (IEC) or 277 V (UL/CSA); the rated DC voltage is 32 V.
The allowable operating temperature is -30°C to 60°C.
The front side is rated IP40 according to IEC 60529.
The mechanical life is 50,000 switching cycles.
Greater than 2.5 kV at 50 Hz and greater than 4 kV impulse (1.2/50 µs).
This is a single-pole (1 pole) circuit breaker.
Thermal tripping.
