| Category | |
| Manufacturer Name | |
| Actuator Type | |
| Breaker Type | |
| Insulation Resistance | |
| Mounting Type | |
| Number of Poles | |
| SVHC Present | |
| Storage Temperature | |
| Voltage Rating | |
| Weight |

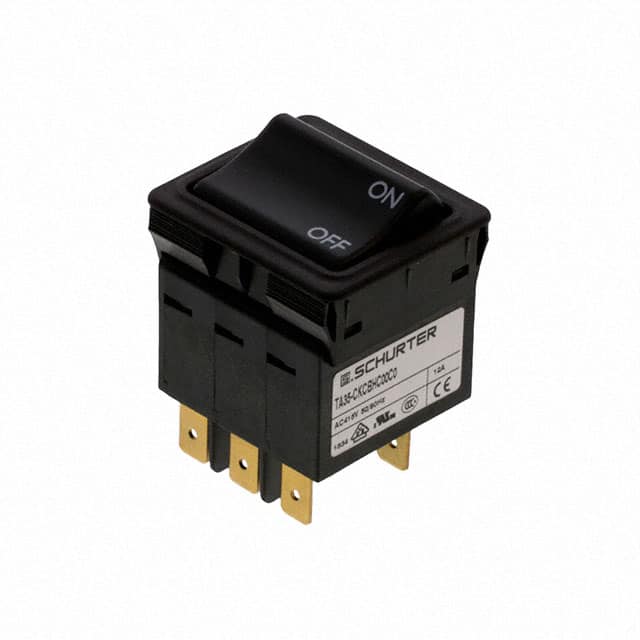

The Schurter Inc. 4435.0146 is a 3-pole thermal circuit breaker designed for reliable circuit protection. It features a rocker actuation type and a panel mount configuration, making it suitable for various industrial applications.
This circuit breaker operates with a rated voltage of 240 VAC and has a rated current range of 0.05A to 12A. It boasts a conditional short circuit capacity of 2 kA @ 415 VAC and a mechanical lifetime of 50,000 switching cycles. The device offers a degree of protection of IP40 on the front side.
Key technical specifications include a dielectric strength of over 2.5 kV (50 Hz) and impulse dielectric strength of over 4 kV (1.2/50 μs). Insulation resistance is rated at over 100 MΩ at 500 VDC. The operating temperature range is -30 °C to 60 °C.
Applications for this thermal circuit breaker include power tools, medical and laboratory equipment, industrial appliances, equipment for construction, cleaning equipment, and commercial and household kitchen appliances. Its robust design and specific ratings make it a versatile component for demanding environments.
Rated 240VAC single-phase or 415VAC three-phase Y connection.
-30°C to 60°C.
0.05A to 12A.
Thermal tripping.
3 poles.
Panel mount.
Rocker actuator.
