| Category | |
| Manufacturer Name | |
| Actuator Type | |
| Breaker Type | |
| Current Rating (Amps) | |
| Insulation Resistance | |
| Mounting Type | |
| Number of Poles | |
| SVHC Present | |
| Storage Temperature | |
| Voltage Rating | |
| Weight |

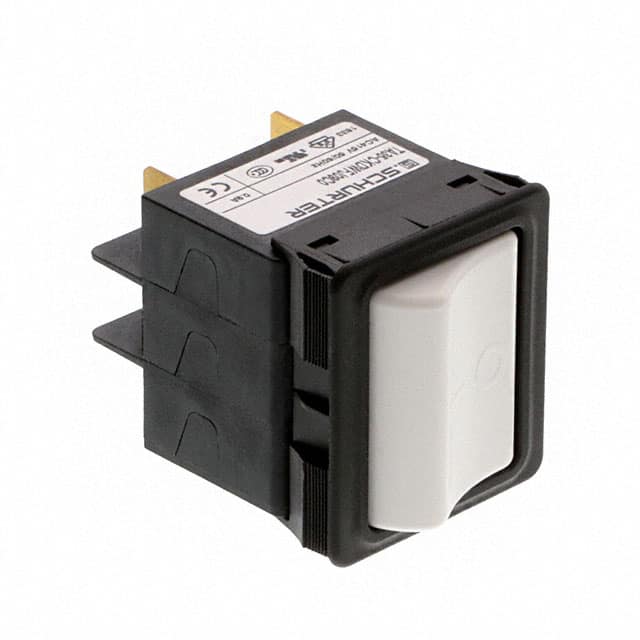

The Schurter Inc. 4435.0043 is a thermal circuit breaker designed for equipment protection. This 3-pole device utilizes rocker actuation for operation and is suitable for panel mounting.
Key electrical specifications include a current rating of 900mA and a voltage rating of 240V AC. The circuit breaker offers a rated current range from 0.05 to 12A and a conditional short circuit capacity of 2 kA at 415 VAC. It operates within an allowable temperature range of -30°C to 60°C.
Mechanical features include a lifetime of 50,000 switching cycles for both AC and DC operations. The device has a weight ranging from 43.0 to 45.0 grams and meets IP40 degree of protection on the front side.
Applications for this circuit breaker include power tools, medical and laboratory equipment, industrial appliances, and commercial kitchen appliances.
The circuit breaker is rated for 240 VAC (phase-to-neutral) or 415 VAC (phase-to-phase).
The rated current is 0.9 A, with the adjustable range between 0.05 and 12 A.
Panel mount.
-30°C to 60°C.
IP40 according to IEC 60529 on the front side.
