| Category | |
| Manufacturer Name | |
| Actuator Type | |
| Breaker Type | |
| Illumination | |
| Illumination Voltage (Nominal) | |
| Insulation Resistance | |
| Mounting Type | |
| Number of Poles | |
| Storage Temperature | |
| Voltage Rating | |
| Weight |

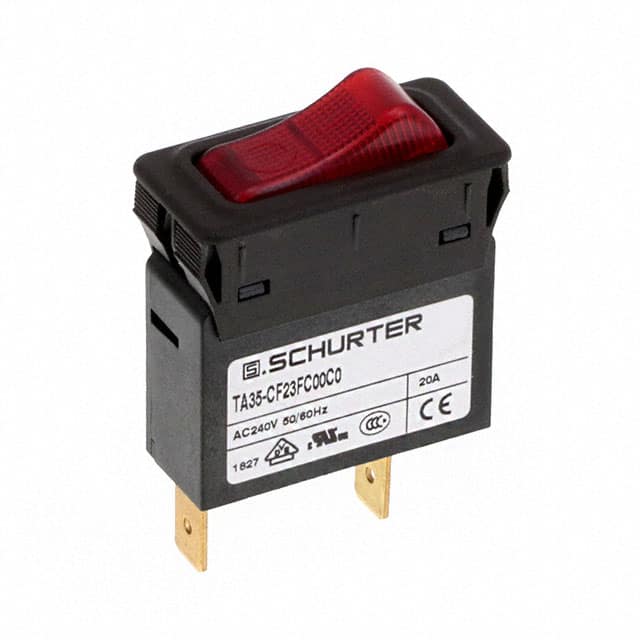

The Schurter Inc. 4435.0101 is a 1-pole thermal circuit breaker with a rocker actuation type, suitable for panel mounting. It offers a rated voltage of 240 VAC (IEC) or 277 VAC (UL/CSA) and 32 VDC. The current rating ranges from 0.05 A to 20 A.
This circuit breaker has a mechanical lifetime of 50,000 switching cycles and an AC electrical lifetime of 30,000 cycles at cos φ 0.6. It meets IEC standards for overload trips, with a minimum of 40 trips at 6 x Ir, and UL/CSA standards with a minimum of 50 trips at 1.5 x Ir.
Environmental specifications include an operating temperature range of -30 °C to 60 °C and a storage temperature range of -40 °C to 60 °C. It also exhibits vibration resistance according to IEC 60068-2-6 and shock resistance according to IEC 60068-2-27.
Applications for this thermal circuit breaker include power tools, medical and laboratory equipment, industrial appliances, equipment for construction, cleaning equipment, commercial and household kitchen appliances, industrial power, and industrial lighting arrays.
The rated AC voltage is 240 VAC per IEC and 277 VAC per UL/CSA. The rated DC voltage is 32 VDC.
The allowable operating temperature range is -30 °C to 60 °C.
The front side offers IP40 protection according to IEC 60529.
The mechanical lifetime is a minimum of 50,000 switching cycles.
The dielectric strength exceeds 2.5 kV at 50 Hz and exceeds 4 kV for impulse 1.2/50 μs.
