| Category | |
| Manufacturer Name | |
| Actuator Type | |
| Breaker Type | |
| Current Rating (Amps) | |
| Insulation Resistance | |
| Mounting Type | |
| Number of Poles | |
| Storage Temperature | |
| Voltage Rating | |
| Weight |

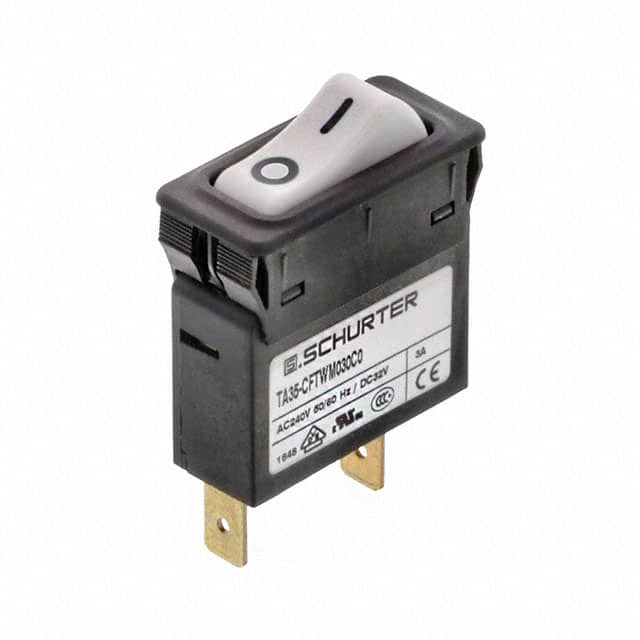

This Schurter Inc. 4435.0082 is a thermal circuit breaker designed for panel mounting. It is a 1-pole device with a rocker actuation type.
The circuit breaker operates with a rated voltage of 240 VAC (IEC) or 277 VAC (UL/CSA) and 32 VDC. The current rating range is from 0.05 to 20 A AC. It offers a conditional short circuit capacity of 2 kA at 240 VAC.
Key specifications include a degree of protection of IP40 on the front side, dielectric strength greater than 2.5 kV at 50 Hz, and insulation resistance greater than 100 MΩ at 500 VDC. The mechanical lifetime is rated for 50,000 switching cycles.
Environmental specifications include an operating temperature range of -30 °C to 60 °C and vibration resistance according to IEC 60068-2-6. The device is designed for applications such as power tools, medical equipment, and industrial appliances.
The rated current is 3A.
It is rated for 240VAC (IEC), 277VAC (UL/CSA), and 32VDC.
It uses a rocker actuator.
The allowable operating temperature range is -30°C to 60°C.
The front side has IP40 protection according to IEC 60529.
It is rated for a minimum of 50,000 mechanical switching cycles.
