| Category | |
| Manufacturer Name | |
| Actuator Type | |
| Breaker Type | |
| Current Rating (Amps) | |
| Insulation Resistance | |
| Mounting Type | |
| Number of Poles | |
| SVHC Present | |
| Storage Temperature | |
| Voltage Rating | |
| Weight |

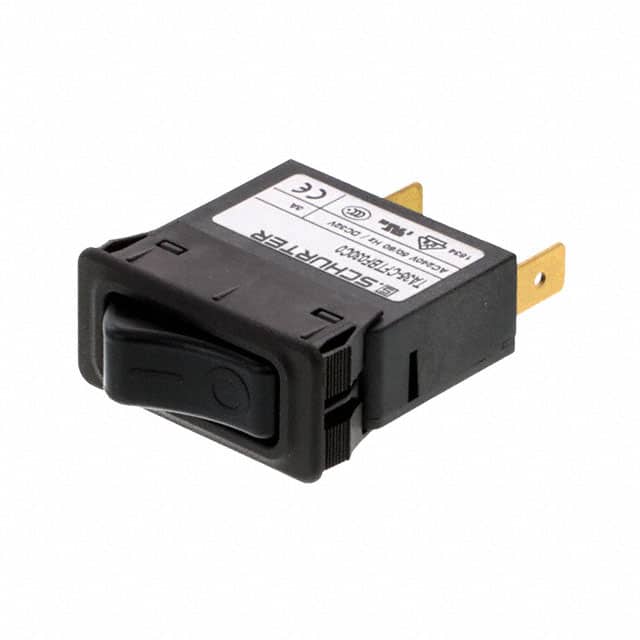

The Schurter Inc. 4435.0172 is a 1-pole thermal circuit breaker designed for equipment protection. It utilizes rocker actuation and offers a panel mount configuration.
Key electrical specifications include a rated AC voltage of 240 VAC (IEC) and 277 VAC (UL/CSA), and a rated DC voltage of 32 VDC. The current rating ranges from 0.05 to 20 A AC, with a specific nominal rating of 3A for this model. It has a conditional short circuit capacity of 2 kA at 240 VAC.
Environmental and mechanical specifications include an operating temperature range of -30 °C to 60 °C and a degree of protection of IP40 on the front side. The breaker is built for durability with a mechanical lifetime of 50,000 switching cycles.
Applications for this type of circuit breaker include power tools, medical and laboratory equipment, industrial appliances, and commercial kitchen appliances.
The rated AC voltage is 240 VAC according to IEC standards and 277 VAC according to UL/CSA standards.
The rated DC voltage is 32 VDC.
The AC current rating range is from 0.05 A to 20 A.
The allowable operating temperature range is -30 °C to 60 °C.
The mechanical lifetime is rated for 50,000 switching cycles.
