| Category | |
| Manufacturer Name | |
| Actuator Type | |
| Breaker Type | |
| Current Rating (Amps) | |
| Illumination | |
| Illumination Voltage (Nominal) | |
| Insulation Resistance | |
| Mounting Type | |
| Number of Poles | |
| Storage Temperature | |
| Voltage Rating | |
| Weight |

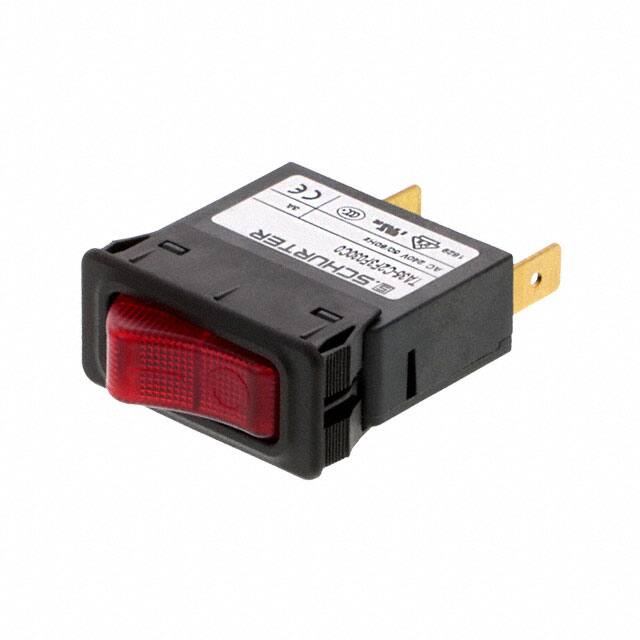

The Schurter Inc. 4435.0175 is a 1-pole thermal circuit breaker designed for equipment protection. It features a rocker actuation type and a panel mount configuration.
This circuit breaker offers a rated voltage of 240 VAC (IEC) and 277 VAC (UL/CSA), along with a DC rating of 32 VDC. The current rating range is from 0.05 to 20 A, with this specific model rated at 3A. It has a conditional short circuit capacity of 2 kA at 240 VAC.
Key specifications include a thermal tripping type, mechanical lifetime of 50,000 switching cycles, and an operating temperature range of -30 °C to 60 °C. The degree of protection on the front side is IP40.
Applications for this type of circuit breaker include power tools, medical and laboratory equipment, industrial appliances, and commercial kitchen appliances.
The Schurter 4435.0175 is rated for 240 VAC (IEC), 277 VAC (UL/CSA), and 32 VDC.
The allowable operating temperature range is -30°C to 60°C.
The front side has an IP40 degree of protection according to IEC 60529.
The mechanical lifetime is 50,000 switching cycles.
The conditional short circuit capacity is 2 kA at 240 VAC per IEC 60934.
It uses a rocker actuator with red illumination.
