| Category | |
| Manufacturer Name | |
| Actuator Type | |
| Breaker Type | |
| Current Rating (Amps) | |
| Insulation Resistance | |
| Mounting Type | |
| Number of Poles | |
| Operating Temperature | |
| Storage Temperature | |
| Voltage Rating | |
| Weight |

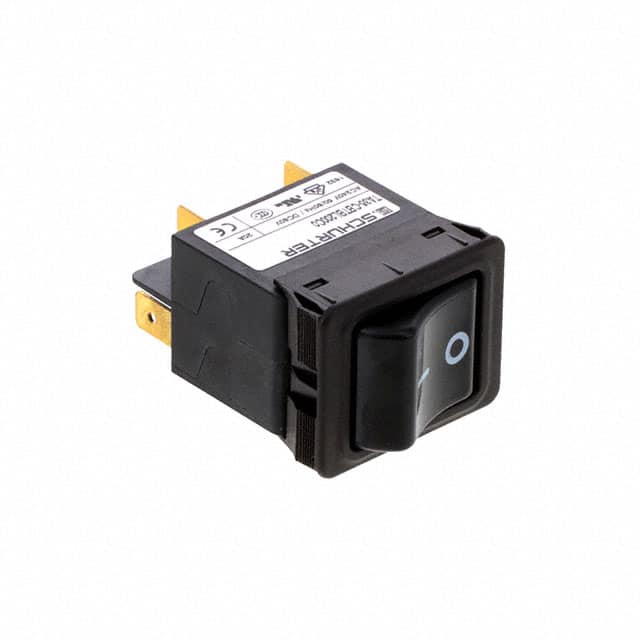

This Schurter Inc. 4435.0078 is a thermal circuit breaker from the TA35 series, designed for reliable circuit protection in various industrial applications. It is a 2-pole device with a rocker actuator for easy operation and panel mounting.
The circuit breaker has a rated current of 20A and a rated AC voltage of 240V, with a DC voltage rating of 60V. It offers a conditional short circuit capacity of 2 kA at 240 VAC. The device is built for durability, with a mechanical lifetime of 50,000 switching cycles.
Environmental specifications include a front-side degree of protection of IP40. The operating temperature range is -30 °C to 60 °C, and storage temperature ranges from -40 °C to 60 °C. It also meets RoHS3 compliance standards.
Applications for this circuit breaker include power tools, medical and laboratory equipment, industrial appliances, and commercial kitchen appliances.
The rated voltage is 240 VAC and 60 VDC.
The operating temperature range is -30°C to 60°C.
The front side degree of protection is IP40 according to IEC 60529.
The mechanical lifetime is 50,000 switching cycles.
The dielectric strength is greater than 2.5 kV at 50 Hz.
The impulse withstand voltage is greater than 4 kV at 1.2/50 μs.
