| Category | |
| Manufacturer Name | |
| Actuator Type | |
| Breaker Type | |
| Current Rating (Amps) | |
| Insulation Resistance | |
| Mounting Type | |
| Number of Poles | |
| Operating Temperature | |
| Storage Temperature | |
| Voltage Rating |

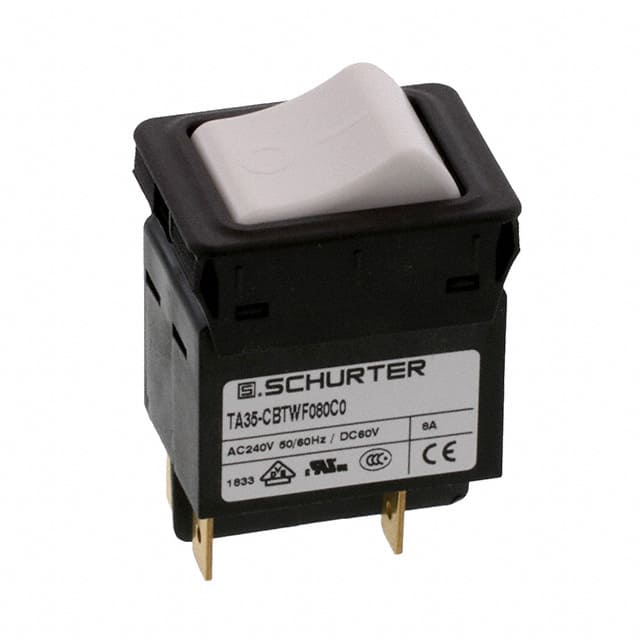

The Schurter Inc. TA35 Rocker 2-Pole (part number 4435.0046) is a thermal and thermal-magnetic circuit breaker designed for equipment protection. It features a 2-pole configuration with rocker actuation and a snap-in version for panel mounting.
This circuit breaker operates with a rated voltage of 240 VAC (IEC) or 277 VAC (UL/CSA) and 60 VDC. The AC current rating ranges from 0.05 to 20 A, with a magnetic trip limit up to 16 A. It offers a conditional short circuit capacity of 2 kA at 240 VAC according to IEC 60934.
Environmental specifications include a front-side degree of protection of IP40. The operating temperature range is -30 °C to 60 °C, and storage temperature is -40 °C to 60 °C. Mechanical lifetime is rated at 50,000 switching cycles.
Applications for this circuit breaker include power tools, medical and laboratory equipment, industrial appliances, equipment for construction, cleaning equipment, and commercial/household kitchen appliances.
The circuit breaker is rated for 240VAC (IEC) and 277VAC (UL/CSA), and 60VDC.
The operating temperature range is -30°C to 60°C.
The circuit breaker is panel mounted.
The mechanical lifetime is 50,000 switching cycles.
The dielectric strength is greater than 2.5 kV at 50 Hz and impulse withstand voltage greater than 4 kV.
The front side has IP40 degree of protection per IEC 60529.
It withstands ±0.75 mm at 10-60 Hz and 10 G at 60-500 Hz per IEC 60068-2-6.
