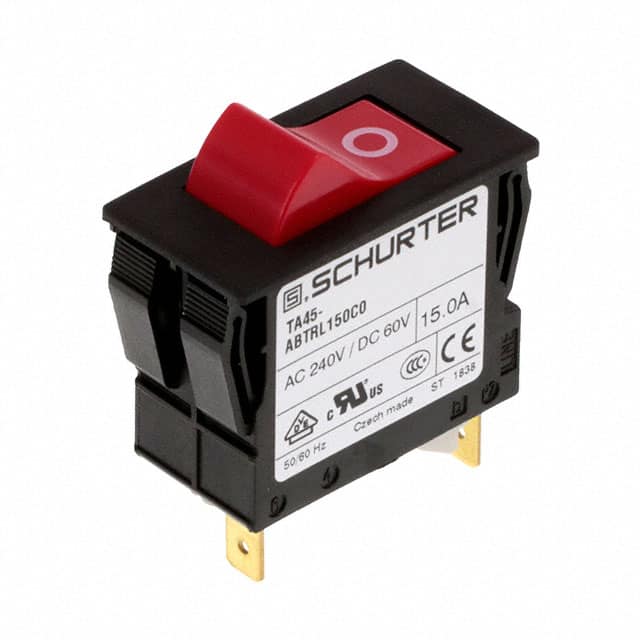

This Schurter Inc. 4430.3541 is a 2-pole thermal circuit breaker featuring rocker actuation and panel mount capability. It provides thermal overload protection with a rated current of 15A and a rated voltage of 240 VAC or 60 VDC.
The circuit breaker has a conditional short circuit capacity of 1 kA AC and a short circuit capacity Icn of 300A at 240 VAC. It is designed for a mechanical lifetime of 50,000 switching cycles and operates within an ambient temperature range of -10°C to 55°C.
Key technical data includes a dielectric strength of 4 kVAC, insulation resistance greater than 100 MΩ at 500 VDC, and a degree of protection of IP40 on the front side. The tripping type is thermal, and the actuation type is rocker.
Applications for this circuit breaker include power tools, industrial appliances, power supplies, equipment for construction, and cleaning equipment. It is built to withstand vibration and shock according to IEC standards.
The rated voltage is 240 VAC and 60 VDC.
The current rating is 15A.
It has 2 poles.
The allowable operation temperature is -10 °C to 55 °C.
It uses rocker actuation.
