| Category | |
| Manufacturer Name | |
| Actuator Type | |
| Breaker Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Insulation Resistance | |
| Mounting Type | |
| Number of Poles | |
| Storage Temperature | |
| Voltage Rating | |
| Weight |

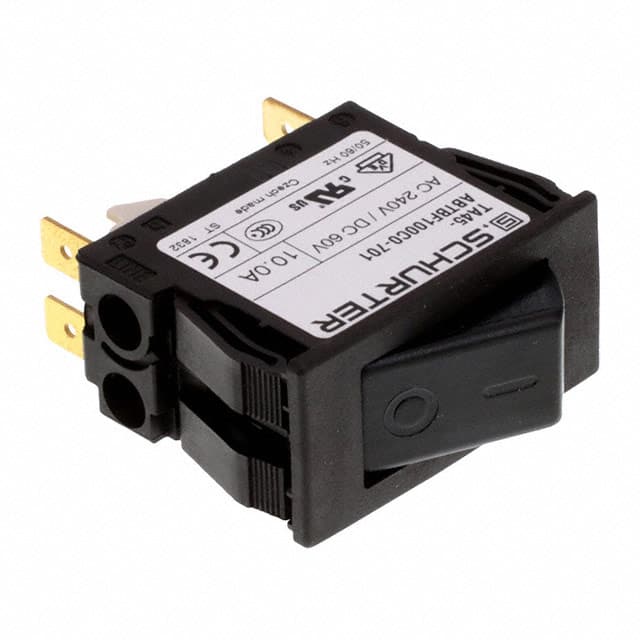

The Schurter 4430.1628 is a 2-pole thermal circuit breaker from the TA45 series, suitable for various industrial applications. It offers a rated voltage of 240 VAC and 60 VDC, with a current rating range of 0.05 to 20 A AC. The breaker type is thermal, with a rocker actuation.
This circuit breaker is designed for panel mounting and provides a degree of protection of IP40 on the front side. It has a mechanical lifetime of 50,000 switching cycles and an operating temperature range of -10 °C to 55 °C. The conditional short circuit capacity is 1 kA at 240 VAC.
Key technical data includes a dielectric strength of 4 kVAC and an insulation resistance greater than 100 MΩ at 500 VDC. It meets IEC standards for vibration and shock resistance. The weight ranges from 30 g to 50 g.
The Schurter 4430.1628 is rated for 240VAC and 60VDC.
The current rating is 10A.
The allowable operating temperature range is -10°C to 55°C.
The degree of protection is IP40, and IP54 with a factory-mounted protection cover.
It uses a rocker actuator.
It is a 2-pole circuit breaker.
