| Category | |
| Manufacturer Name | |
| Actuator Type | |
| Breaker Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Illumination | |
| Illumination Voltage (Nominal) | |
| Insulation Resistance | |
| Mounting Type | |
| Number of Poles | |
| Storage Temperature | |
| Voltage Rating | |
| Weight |

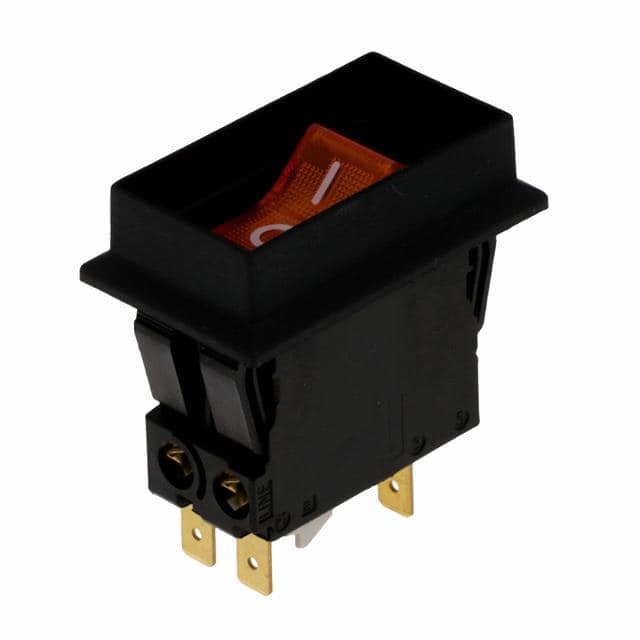

The Schurter 4430.3486 is a thermal circuit breaker from the TA45 series, featuring a 2-pole configuration and rocker actuation. It is designed for panel mounting and provides a rated current of 10A with a voltage rating of 240VAC and 60VDC.
This circuit breaker offers a conditional short circuit capacity of 1 kA at 240VAC and a short circuit capacity of 300A at 240VAC. It has a degree of protection of IP40 on the front side, which can be increased to IP54 with a factory-mounted protection cover. The device boasts a mechanical lifetime of 50,000 switching cycles and an AC/DC lifetime of 1 x Ir, also 50,000 switching cycles.
With an operating temperature range of -10 °C to 55 °C, the Schurter 4430.3486 is suitable for various industrial environments. Its robust construction includes vibration resistance up to 10 G and shock resistance of 30 G / 18 ms. The breaker type is thermal, ensuring reliable overload protection.
Applications for this circuit breaker include power tools, industrial appliances, power supplies, equipment for construction, and cleaning equipment. It is designed for high configurability and features a positively trip-free release mechanism.
The rated voltage is 240 VAC and 60 VDC.
-10 °C to 55 °C.
The short circuit capacity Icn is 300A at 240VAC for rated current ≥3A, and conditional short circuit capacity Inc is 1 kA.
Rocker actuator.
Yes, it has orange illumination with a nominal voltage of 220V.
2 poles.
IP40, and IP54 with the factory-mounted protection cover.
