| Category | |
| Manufacturer Name | |
| Actuator Type | |
| Approval Agency | |
| Breaker Type | |
| Insulation Resistance | |
| Mounting Type | |
| Number of Poles | |
| Storage Temperature | |
| Voltage Rating | |
| Weight |

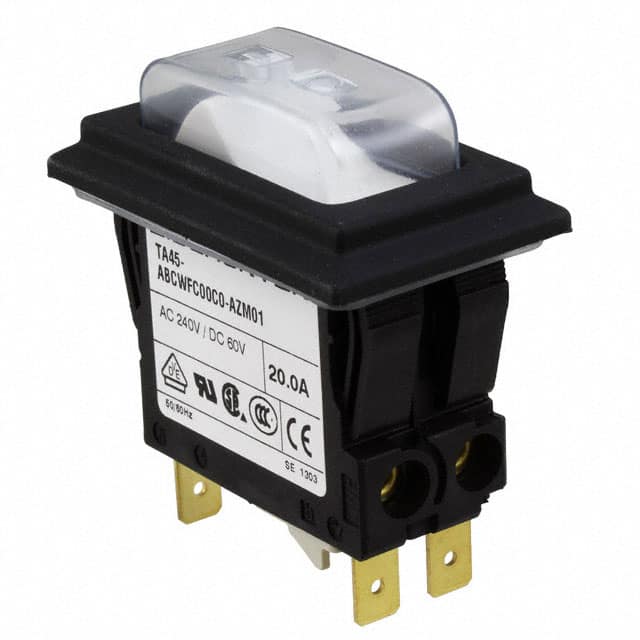

The Schurter Inc. 4430.0907 is a thermal circuit breaker offering 2-pole protection for equipment. It operates with a rated voltage of 240 VAC and 60 VDC, and a current range of 0.05 to 20 A.
This circuit breaker features a thermal tripping mechanism and a rocker actuation type, suitable for panel mounting. It has a mechanical lifetime of 50,000 switching cycles and an operating temperature range of -10 °C to 55 °C.
Applications for this device include power tools, industrial appliances, power supplies, equipment for construction, and cleaning equipment. It meets various approval standards including CSA, EN, GB, IEC, and UL.
Key specifications include a dielectric strength of 4 kVAC, insulation resistance greater than 100 MΩ at 500 VDC, and a degree of protection of IP40 on the front side.
The rated operating voltage is 240 VAC or 60 VDC.
The allowable operating temperature range is -10 °C to 55 °C.
Panel mount.
Thermal tripping.
Rocker actuation.
2 poles.
Conditional short circuit capacity (Inc) is 1 kA at 240 VAC. Short circuit capacity (Icn) is 300 A at 240 VAC for In ≥ 3 A.
