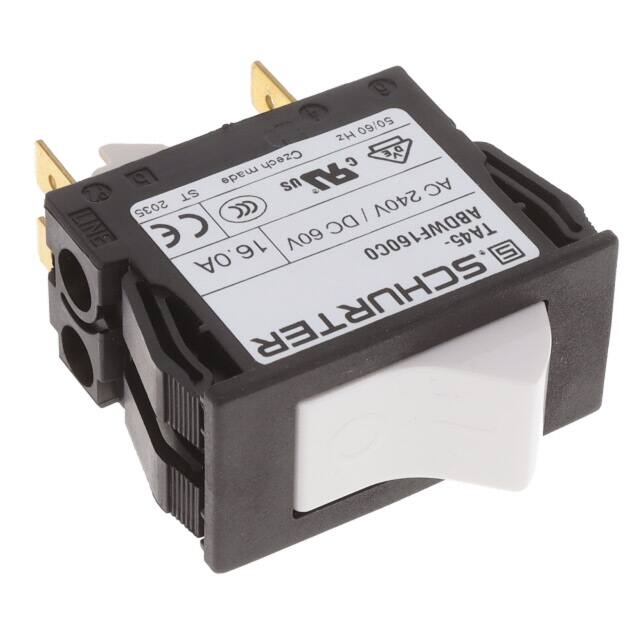

The Schurter Inc. 4430.0699 is a thermal circuit breaker with a 2-pole configuration, suitable for various industrial applications. It offers a rated current of 16A and a rated voltage of 240VAC, with a DC voltage rating of 60VDC. The breaker type is thermal, and it features a rocker actuation.
Designed for panel mounting, this circuit breaker provides reliable overload protection. Key specifications include a conditional short circuit capacity of 1 kA and a short circuit capacity of 300A at 240VAC. It operates within a temperature range of -10°C to 55°C and has a mechanical lifetime of 50,000 switching cycles.
Approvals include CSA C22.2 No 235, EN 60934, GB 17701, IEC 60934, and UL1077, indicating compliance with various safety standards. The degree of protection is IP40 on the front side.
Applications for this circuit breaker include power tools, industrial appliances, power supplies, equipment for construction, and cleaning equipment.
240 VAC and 60 VDC.
Panel mount.
-10 to 55 °C.
Thermal.
Rocker.
CSA C22.2 No 235, EN 60934, GB 17701, IEC 60934, UL1077.
50,000 switching cycles.
