| Category | |
| Manufacturer Name | |
| Actuator Type | |
| Breaker Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Insulation Resistance | |
| Mounting Type | |
| Number of Poles | |
| Storage Temperature | |
| Voltage Rating | |
| Weight |

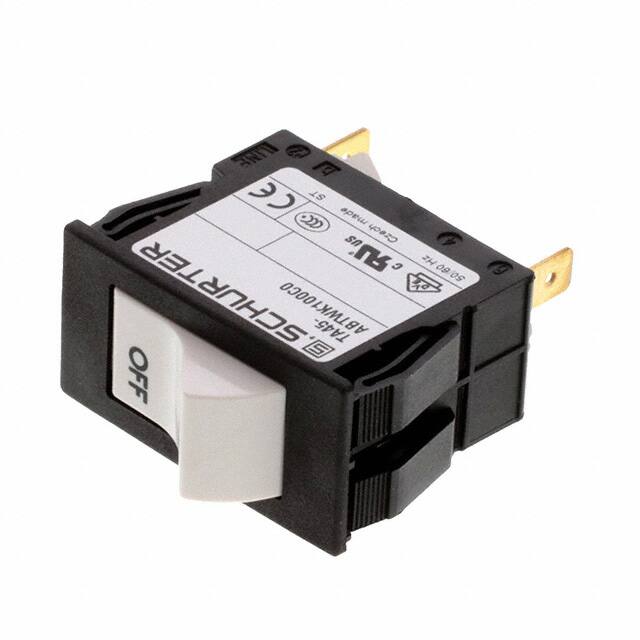

The Schurter Inc. 4430.0413 is a thermal circuit breaker with a 2-pole configuration, suitable for AC and DC applications. It is rated for 240 VAC and 60 VDC, with a current rating of 10A. The breaker features a positively trip-free release mechanism and a rocker actuation type.
Designed for panel mounting, this circuit breaker offers a degree of protection of IP40 on the front side. It has a mechanical lifetime of 50,000 switching cycles and an operating temperature range of -10 °C to 55 °C. The TA45 series breaker is built for industrial environments and applications such as power tools, industrial appliances, and power supplies.
Key electrical specifications include a conditional short circuit capacity of 1 kA at 240 VAC and various short circuit capacities (Icn) depending on the current and voltage rating. It also boasts a dielectric strength of 4 kVAC and an insulation resistance greater than 100 MΩ at 500 VDC.
The circuit breaker is rated for 240 VAC and 60 VDC.
The current rating is 10A.
The allowable operating temperature range is -10 °C to 55 °C.
