Mfr Part #:

40-9526HDM

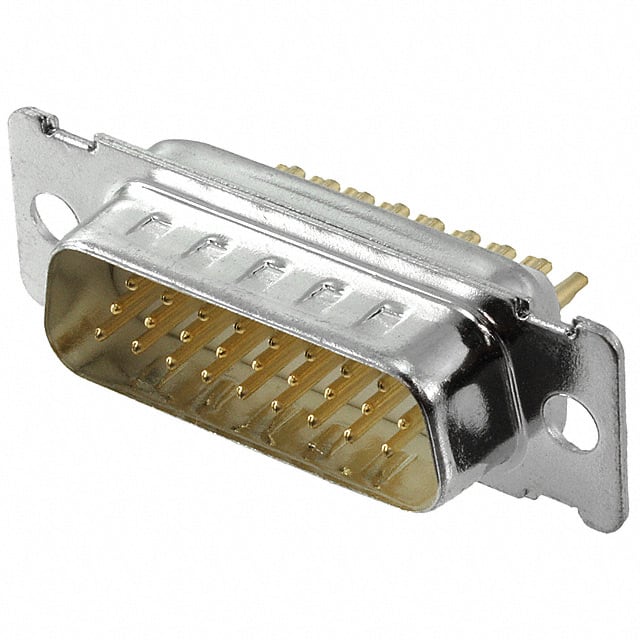

Name: 40-9526HDM
Brand: Cinch
SKU: 40-9526HDM

Mfr Name: Cinch

Description:

CONN D-SUB HD PLUG 26P SLDR CUP

Stock on Request

40-9526HDM Description

Short technical summary and product information.

CONN D-SUB HD PLUG 26P SLDR CUP

Mfr Standard Lead Time: 12 weeks (varies by distributor)

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

Same form/fit/function or matching attribute configuration across different manufacturers.

L717HDA26P

Amphenol ICC

CONN D-SUB HD PLUG 26P SLDR CUP

A-HDS 26 LL/Z

Assmann WSW Components

CONN D-SUB HD PLUG 26P SLDR CUP

163A16609X

Conec

CONN D-SUB HD PLUG 26P SLDR CUP

Category	D-Sub Connector Assemblies
Manufacturer Name	Cinch
Connector Style	D-Sub, High Density
Connector Type	Plug, Male Pins
Contact Finish	Gold
Contact Finish Thickness	Flash
Contact Type	Signal
Features	Grounding Indents
Flange Feature	Housing/Shell (Unthreaded)
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Number of Positions	26
Number of Rows	3
Shell Material, Finish	Steel, Tin Plated
Shell Size, Connector Layout	2 (DA, A) High Density
Termination	Solder Cup
