| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,450 pcs
|
1450 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Style | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Type | |
| Current Rating (Amps) | |
| Features | |
| Flange Feature | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Shell Material, Finish | |
| Shell Size, Connector Layout | |
| Tape & Reel | |
| Termination | |
| Termination Style |

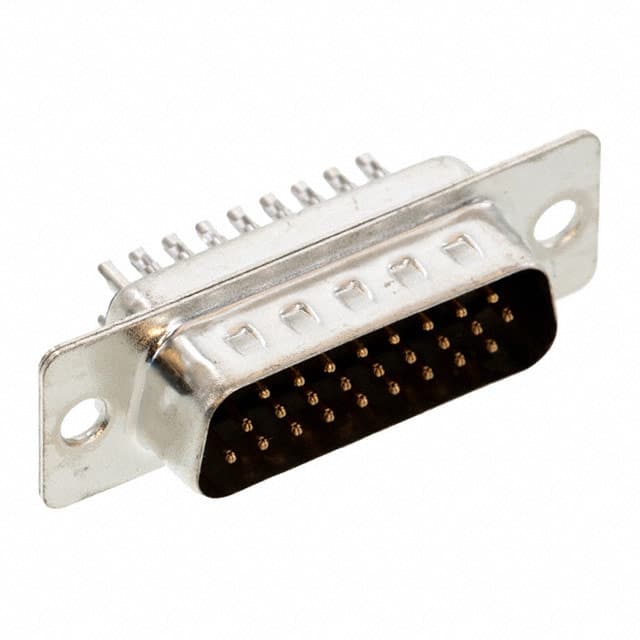

The L717HDA26P is a D-Sub high density plug connector from Amphenol ICC. It features 26 positions arranged in 3 rows, with male pin contacts. The connector uses a solder cup termination style and is designed for free hanging (in-line) mounting. The shell is made of steel with tin plating, and the shell size is 2 (DA, A) high density. The flange feature is housing/shell unthreaded. Contacts are signal type with gold flash finish. The current rating is 3 amps. The connector includes grounding indents as a feature. The material flammability rating is UL94 V-0. This connector is suitable for applications requiring a high density D-Sub interface with solder cup connections.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.90 | $2.90 |
| 10+ | $2.49 | $2.49 |
| 25+ | $2.22 | $2.22 |
| 100+ | $1.95 | $1.95 |
| 500+ | $1.89 | $1.89 |
| 1,000+ | $1.68 | $1.68 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
26 positions.
3 amps.
Free hanging (in-line).
Solder cup.
Steel, tin plated.
Gold flash.
UL94 V-0.
