3VA9134-0JB10
Siemens
Siemens 3VA9134-0JB10 wire connector accessory for 3VA5 125 circuit breakers. This terminal block offers versatile connections compliant with IEC and UL standards.
| Category | |
| Manufacturer Name | |
| Accessory Type | |
| For Use With |

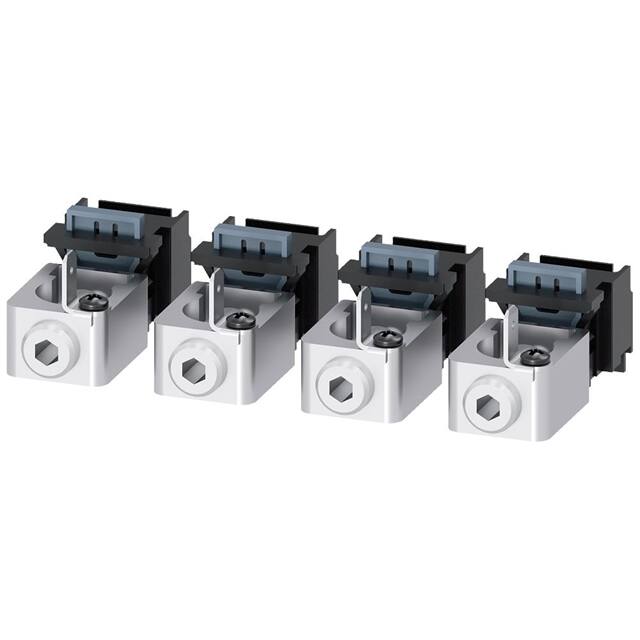

This Siemens SENTRON wire connector, part number 3VA9134-0JG11, is an accessory designed for voltage tap-off applications. It is specifically intended for use with the 3VA5 125 series circuit breakers.
The connector facilitates connections for both copper and aluminum conductors. According to IEC standards, it accepts stranded copper conductors from 10 mm² to 95 mm², and solid or stranded aluminum conductors from 10 mm² to 16 mm² or 10 mm² to 95 mm², respectively. Tightening torques for copper cables range from 6.2 Nm for 10 mm² to 11.3 Nm for larger sizes.
Under UL standards, the connector accommodates stranded or finely stranded copper conductors from 8 AWG to 3/0 AWG, with a permissible conductor temperature of 75 °C. For aluminum cables, it accepts stranded conductors from 12 AWG to 3/0 AWG. UL tightening torques for copper cables range from 55 lb-in for 8 AWG to 100 lb-in for sizes 6 AWG to 3/0 AWG.
This accessory is suitable for applications requiring reliable wire connections within the specified parameters, ensuring proper electrical contact for circuit protection systems.
The Siemens 3VA9134-0JG11 is a wire connector accessory designed for voltage tap-off with 3VA5 125 circuit breakers.
According to IEC standards, this connector supports stranded copper cable from 10 mm² to 95 mm², and solid or stranded aluminum cable from 10 mm² to 16 mm² or 10 mm² to 95 mm² respectively.
For copper cables, the tightening torque is 6.2 Nm for 10 mm² and 11.3 Nm for sizes 16 mm² to 95 mm².
According to UL standards, this connector supports stranded or finely stranded copper cable from 8 AWG to 3/0 AWG, and stranded aluminum cable from 12 AWG to 3/0 AWG.
The permissible temperature for connectable conductors according to UL 486A-486B is 75 °C.
